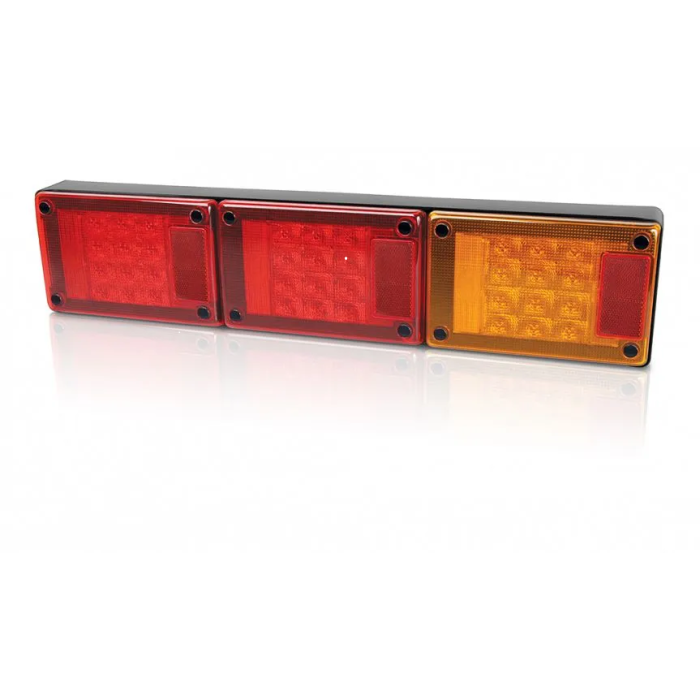

Hella 2430DTCS Jumbo-S LED Triple Module with DT Connector Stop/Rear Position/Indicator Lamp

Hella 2430DTCS Jumbo-S LED Triple Module with DT Connector Stop/Rear Position/Indicator Lamp

Hella 2430DTCS Jumbo-S LED Triple Module with DT Connector Stop/Rear Position/Indicator Lamp

Based on the classic original HELLA design, the new Jumbo-S LED Triple Module now has additional improvements to ensure it remains the most reliable and most popular lamp cluster on the market.

The inclusion of a built-in Deutsch 6 pole socket streamlines the installation process and doubly improves compatibility with the HELLA LED Lamp Distribution Box. An innovative 2 bolt mounting mechanism has also been added, that significantly improves the strength in this critical area.

The indicator unit features HCS Technology*, patented indicator failure control technology which allows seamless integration of LED lights and compatibility with traditional bulb based failure detection systems.

Proudly designed and manufactured in New Zealand, with a 5 year warranty.

➔ Easy wiring connection from centre of body (6 pole DT socket)
➔ Large design for excellent visibility on heavy vehicles
➔ HCS Technology* compatibile with ISO 13207-1 & 24V HCS Flasher Units
➔ Easy mounting (2 bolts)
➔ 5 year warranty

*HCS Technology – HELLA Compatibility Solution
These lamps feature HCS Technology which is a patented indicator failure control technology. Designed to ISO 13207-1 International Standard, they provide compatibility with 24V DC commercial vehicle indicator failure detection systems, allowing seamless communication with HELLA HCS control flasher units or modern European trucks with body controllers compliant with the ISO 13207-1 standard.

Rearlight - Jumbo-S - LED - 12/24V - Bolted - ADR/GGVS - Plug: DEUTSCH plug - Rear

Features

• Width: 597mm - Height: 133mm - Lamp Type: LED
• Light functions: 3 - with stop light (LED)/with indicator (LED)/with position light (LED)
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
• Synthetic Material Housing
• Mounting Type: Bolted - Fastening Type: for horizontal fastening/for vertical fastening

Specifications

• Part number: 2430DTCS
• Hella number: 2VA 980 761-941
• Barcode (EAN): 9416325250975
• Brand: Hella
• Fitting Position: Rear
• Mounting Type: Bolted
• Voltage: 12 / 24 V
• Light Design: LED
• Lamp Type: LED
• Plug Type: DEUTSCH plug
• Number of light functions: 3
• Light Function: with indicator (LED) / with position light (LED) / with stop light (LED)
• Width: 597 mm
• Height: 133 mm
• Thickness: 54 mm
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Housing Type: Synthetic Material Housing
• Registration Type: ADR/GGVS approved
• Power Consumption: 16 W
• Fastening Type: for horizontal fastening / for vertical fastening
• Product line: Jumbo-S

Assy./disassy. by qualified personnel required!
