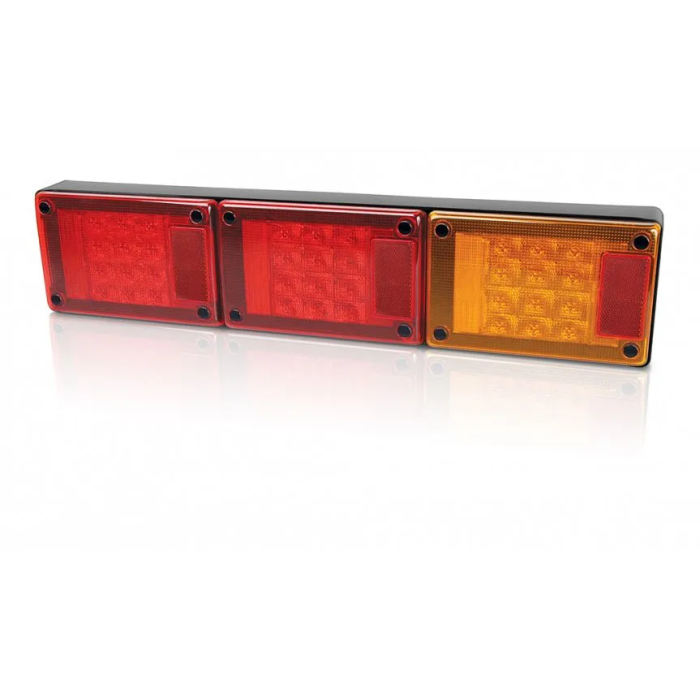

Hella 2430-CS Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator Lamp

Hella 2430-CS Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator Lamp

Hella 2430-CS Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator Lamp

Jumbo-S LED stop, rear position, rear direction indicator lamp with 23cm² red retro reflectors. Lamps are pre-assembled and wired into housing for easy installation. Shockproof and fully sealed to withstand temporary water submersion and high-pressure washing.

Hella Compatibility Solution HCS
Features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard. Please click on HCS above for further information.

Rearlight - Jumbo-S - LED - 12/24V - mounting/Horizontal Screw Fitting - ADR/GGVS - Cable: 2000mm - Rear

Features

• Length: 597mm - Width: 59mm - Height: 133mm - Lamp Type: LED - with reflector
• Light functions: 3 - with stop light (LED)/with position light (LED)/with indicator (LED)
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K9K/IP6K7
• Mounting Type: mounting/Horizontal Screw Fitting

Specifications

• Part number: 2430-CS
• Hella number: 2VA 980 761-811
• Barcode (EAN): 9416325229988
• Brand: Hella
• Fitting Position: Rear
• Voltage: 12 / 24 V
• Light Design: LED
• Lamp Type: LED
• Number of light functions: 3
• Light Function: with indicator (LED) / with position light (LED) / with stop light (LED)
• Cable Length: 2000 mm
• Mounting Type: Horizontal Screw Fitting / mounting
• Length: 597 mm
• Width: 59 mm
• Height: 133 mm
• Power Consumption: 16 W
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Registration Type: ADR/GGVS approved
• DIN/ISO: 13207-1
• Product line: Jumbo-S

with reflector Assy./disassy. by qualified personnel required!
