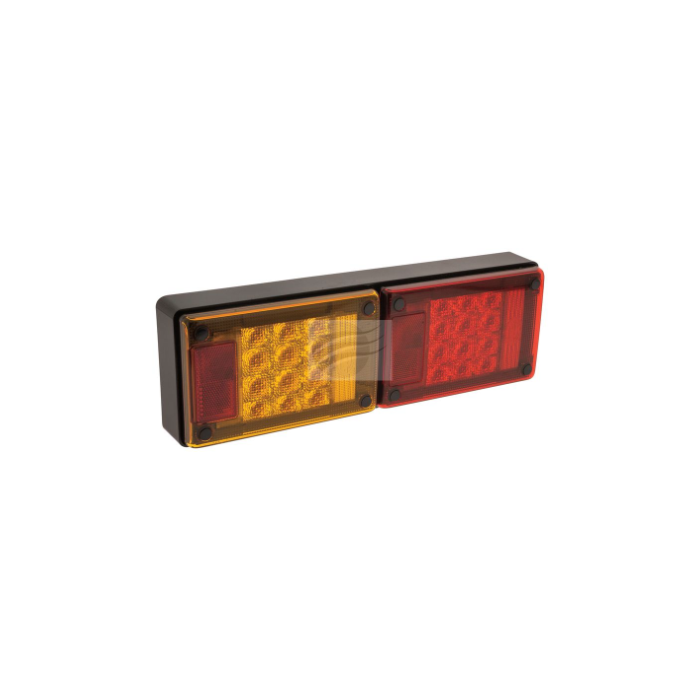

Hella 2429 Jumbo LED Double Combo Lamp 12/24V Stop/ Tail/ Indicator 2m

Hella 2429 Jumbo LED Double Combo Lamp 12/24V Stop/ Tail/ Indicator 2m

Hella 2429 Jumbo LED Double Combo Lamp 12/24V Stop/ Tail/ Indicator 2m

Mounting

Surface mount with mounting bolts supplied.

Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W

Rear position: 1W

Rear direction indicator: 6W

Protection

• Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2m of sheathed multi-core cable.

Compliance

ADR 6/00: Cat 2a

ADR 47/00

ADR 49/00

ISO 13207-1 (2429-CS only)

Rearlight - Jumbo-S - LED - 12/24V - mounting/Horizontal Screw Fitting - ADR/GGVS - Cable: 2000mm - Rear

Features

• Length: 400mm - Width: 59mm - Height: 133mm - Lamp Type: LED - with reflector
• Light functions: 3 - with stop light (LED)/with position light (LED)/with indicator (LED)
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K9K/IP6K7
• Mounting Type: mounting/Horizontal Screw Fitting

Specifications

• Part number: 2429
• Hella number: 2VA 980 760-801
• Barcode (EAN): 9416325230007
• Brand: Hella
• Fitting Position: Rear
• Voltage: 12 / 24 V
• Lamp Type: LED
• Light Design: LED
• Number of light functions: 3
• Light Function: with indicator (LED) / with position light (LED) / with stop light (LED)
• Cable Length: 2000 mm
• Mounting Type: Horizontal Screw Fitting / mounting
• Length: 400 mm
• Width: 59 mm
• Height: 133 mm
• Power Consumption: 10 W
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Registration Type: ADR/GGVS approved
• Product line: Jumbo-S

with reflector Assy./disassy. by qualified personnel required!
