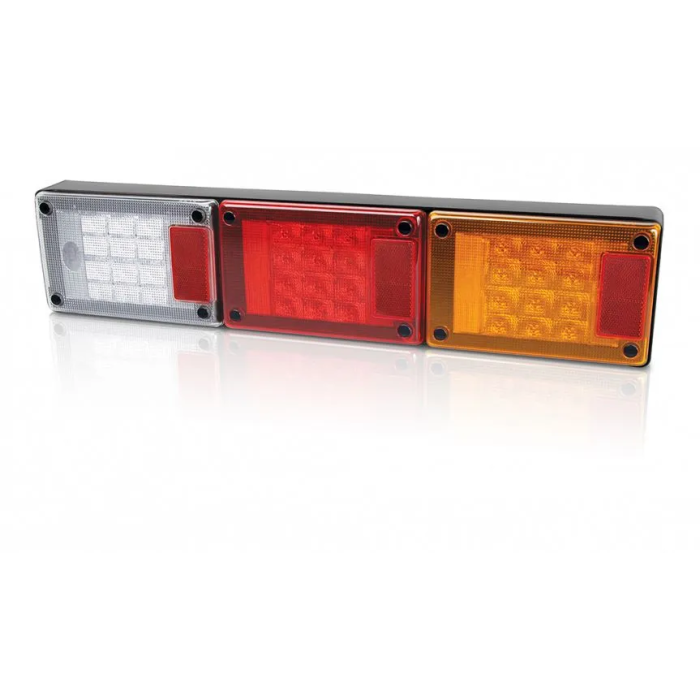

Hella 2431-CS Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

Hella 2431-CS Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

Hella 2431-CS Jumbo-S LED Triple Module Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

Jumbo-S LED stop, rear position, rear direction indicator and reversing lamp with 23cm² red retro reflectors. Lamps are pre-assembled and wired into housing for easy installation. Shockproof and fully sealed to withstand temporary water submersion and high-pressure washing.

Hella Compatibility Solution HCS
Features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.

Rearlight - Jumbo-S - LED - 12/24V - mounting - ADR/GGVS - Cable: 2000mm - Rear

Features

• Length: 597mm - Width: 59mm - Height: 133mm - Lamp Type: LED - with reflector
• Light functions: 4 - with stop light (LED)/with position light (LED)/with indicator (LED)/with reverse light (LED)
• Registration Type: ADR/GGVS - fulfils ADR/GGVS norm: 1/00/49/00/6/00: Cat 2a/47/00 - Prot.type (IP Code): IP6K7/IP6K9K
• Mounting Type: mounting

Specifications

• Part number: 2431-CS
• Hella number: 2VP 980 761-821
• Barcode (EAN): 9416325229995
• Brand: Hella
• Fitting Position: Rear
• Voltage: 12 / 24 V
• Lamp Type: LED
• Light Design: LED
• Number of light functions: 4
• Light Function: with indicator (LED) / with position light (LED) / with reverse light (LED) / with stop light (LED)
• Mounting Type: mounting
• Length: 597 mm
• Width: 59 mm
• Height: 133 mm
• Cable Length: 2000 mm
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• fulfils ADR/GGVS standard: 1/00
• Registration Type: ADR/GGVS approved
• Product line: Jumbo-S

with reflector Assy./disassy. by qualified personnel required!
