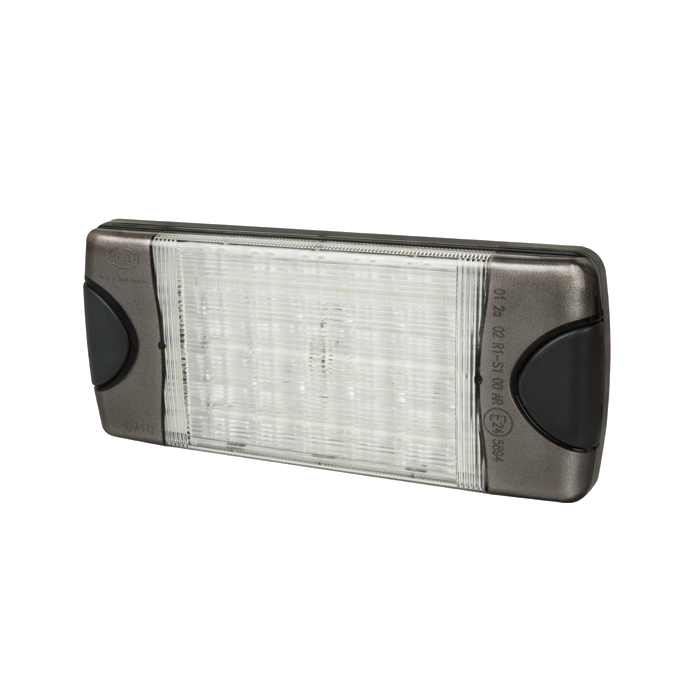

Hella 2383-24VCS DuraLED Combi-S with Reverse Lamp and HCS - 24V

Hella 2383-24VCS DuraLED Combi-S with Reverse Lamp and HCS - 24V

Hella 2383-24VCS DuraLED Combi-S with Reverse Lamp and HCS - 24V

Mounting: Two hole surface mount with mounting bushes supplied.

Suitable for horizontal mounting.

Voltage: 24V DC

Power Consumption

Stop: 3W

Rear position: 1W

Night (2383-DT24VCS only): 1W

Rear direction indicator: 3W

Reverse: 3W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)

IP 6K7 (Protection against dust and temporary water immersion)

IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable

(except DT versions).

Accessory

4963-P 6 pole DT plug, wedge and 6 contacts.

Lens Material: Grilamid®

Compliance

E24

5894

ECE R6/01

ECE R7/02

ECE R23/00

ISO 13207-1

Rearlight - DuraLED Combi-S - LED - 24V - mounting/Bolted - ECE/ADR/GGVS - Lens Colour: transparent - Cable: 2500mm - Plug: open cable ends - left/right - Quantity: 1

Features

• Length: 222mm - Width: 96mm - Height: 25mm - Lamp Type: LED
• Light functions: 4 - with taillight (LED)/with stop light (LED)/with reverse light (LED)/with indicator (LED)
• Registration Type: ECE/ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
• Housing Colour: Anthracite/Black - Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: mounting/Bolted - Fastening Type: for horizontal fastening

Specifications

• Part number: 2383-24VCS
• Hella number: 2SK 980 613-511
• Barcode (EAN): 9416325238027
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: for horizontal fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 V
• Fitting Position: Left / Right
• Height: 25 mm
• Width: 96 mm
• Length: 222 mm
• Light Function: with indicator (LED) / with reverse light (LED) / with stop light (LED) / with taillight (LED)
• Power Consumption: 10 W
• Number of light functions: 4
• Plug Type: open cable ends
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved / ECE approved
• Cable Length: 2500 mm
• Housing Colour: anthracite/black
• Lens Colour: transparent
• Lens Material: Nylon
• Reverse polarity protection: Yes
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
