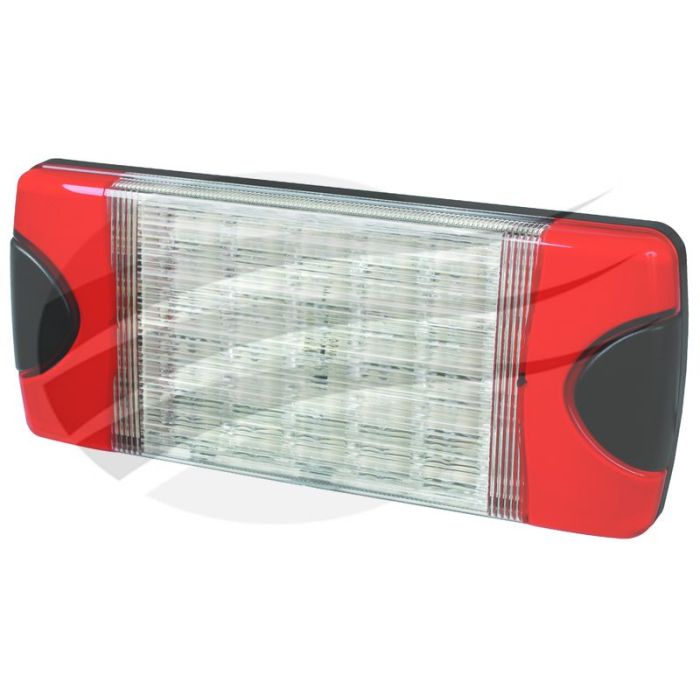

Hella 2378-CS Duraled Combi Stop/Tail/Indicator Lamp HCS Technology - Carton Pack

Hella 2378-CS Duraled Combi Stop/Tail/Indicator Lamp HCS Technology - Carton Pack

Hella 2378-CS Duraled Combi Stop/Tail/Indicator Lamp HCS Technology - Carton Pack

Mounting: Two hole surface mount with mounting bushes supplied.

Suitable for horizontal or vertical mounting.

Voltage: Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W

Rear position: 1W

Rear direction indicator: 5W

Protection:

• Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length: Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material: Grilamid

Compliance

ADR 6/00: Cat 2a

ADR 49/00

ISO 13207-1 (2378-CS only)

E24

5883

ECE R6/01

ECE R7/02

Rearlight - DuraLED Combi-S - LED - 24/12V - mounting/Bolted - ECE/ADR/GGVS - Lens Colour: transparent - Cable: 2500mm - Plug: open cable ends - left/right - Quantity: 1

Features

• Length: 222mm - Width: 96mm - Height: 25mm - Lamp Type: LED
• Light functions: 3 - with taillight (LED)/with stop light (LED)/with indicator (LED)
• Registration Type: ECE/ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
• Housing Colour: Red/Black - Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: mounting/Bolted - Fastening Type: for horizontal fastening/for vertical fastening

Specifications

• Part number: 2378-CS
• Hella number: 2SD 980 613-201
• Barcode (EAN): 9416325228721
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: for horizontal fastening / for vertical fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 25 mm
• Width: 96 mm
• Length: 222 mm
• Light Function: with indicator (LED) / with stop light (LED) / with taillight (LED)
• Power Consumption: 11 W
• Number of light functions: 3
• Plug Type: open cable ends
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved / ECE approved
• Cable Length: 2500 mm
• Housing Colour: red/black
• Lens Colour: transparent
• Lens Material: Nylon
• Reverse polarity protection: Yes
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
