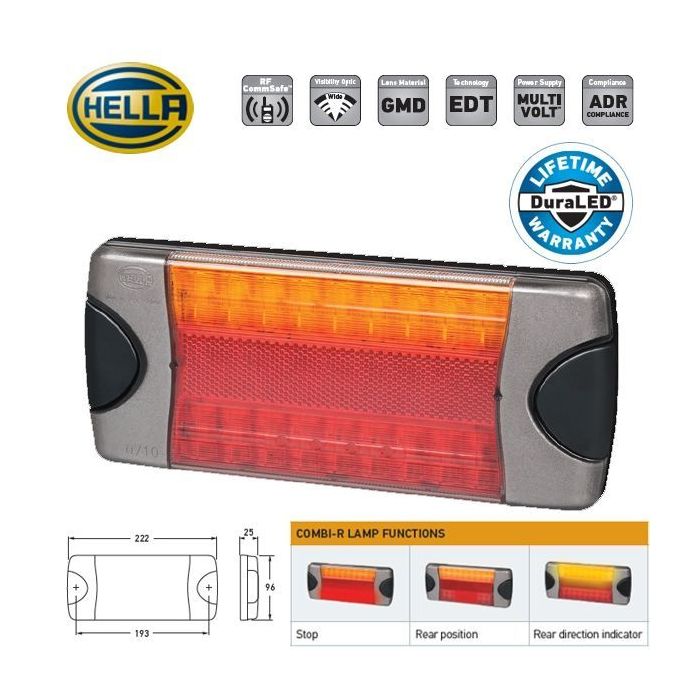

Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination

Name: Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination
Brand: Hella
Price: 213.2 AUD
Availability: InStock

Be the first to review this product

Special Price $213.20 Regular Price $224.42

In stock

SKU

2377

Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination is available to buy in increments of 1

Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination

Details

Hella 2377 DuraLED LED Combination Stop / Tail / Indicator Lamp 12/24 Volt Triple Combination

Specifications
Type	LED
Shape	Rectangular
Voltage	12/24V
Mount	Surface
Width (mm)	223
Height (mm)	96
Depth (mm)	25

Red and Amber Illumination
18 x High Intensity Red LED's and 12 x High Intensity Amber LED's
Red and Amber Optical Grilamid Nylon Lens with inbuilt Retro Reflector
Grey ABS Plastic Housing with mounting screws- caps and bushes included
Horizontal Surface Mount- low mounting depth for easy installation
Pre-wired 2.5m Lead
Fully encapsulated circuitry
Reverse Polarity and Transient Voltage Suppressor
Sealed against Dust and Moisture
Able to withstand High Pressure washing and water submersion
UV- Chemical and stress resistance
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00 2A Rear Indicator Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP6K7 and IP6K9K Rating
Box Qty: 1
2 Year Warranty

Spare Parts:-

9.2377.08 Grey Slim Screw Cap (Single)

9.2330.17 Grey Slim Screw Cap and Screw Bosses (4 of each kind)

Rearlight - DuraLED Combi-R - LED - 12/24V - mounting/Horizontal Screw Fitting/Vertical Screw Fitting - ADR/GGVS - Cable: 2500mm - Rear

Features

Length: 222mm - Width: 25mm - Height: 96mm - Lamp Type: LED - with reflector/with mounting parts
Light functions: 3 - with stop light (LED)/with position light (LED)/with indicator (LED)
Registration Type: ADR/GGVS - Fulfils ECE norm.: R6/01/R7/02/R3 - fulfils ADR/GGVS norm: 47/00 - Prot.type (IP Code): IP6K9K/IP6K7
Diffusing Lens Material: Polyamid 12
Mounting Type: mounting/Horizontal Screw Fitting/Vertical Screw Fitting

Specifications

Part number: 2377
Hella number: 2VA 980 710-011
Barcode (EAN): 9416325229001
Brand: Hella
Fitting Position: Rear
Voltage: 12 / 24 V
Light Design: LED
Lamp Type: LED
Number of light functions: 3
Light Function: with indicator (LED) / with position light (LED) / with stop light (LED)
Mounting Type: Horizontal Screw Fitting / Vertical Screw Fitting / mounting
Power Consumption: 9 W
Cable Length: 2500 mm
Length: 222 mm
Width: 25 mm
Height: 96 mm
Lens Material: Polyamid 12
Protection Type per ISO 20653: IP6K7 / IP6K9K
Reverse polarity protection: Yes
fulfils ECE standard: R3 / R6/01 / R7.02
fulfils ADR/GGVS standard: 47/00
Registration Type: ADR/GGVS approved
Product line: DuraLED

with attachment parts with attachment parts Assy./disassy. by qualified personnel required!

More Information

More Information
Manufacturer	Hella
hella_sap	980.710-011
Barcode	9416325229001
