Hella 2378-TP DuraLED ® Combi-S Trailer Lighting Kit

Hella 2378-TP DuraLED ® Combi-S Trailer Lighting Kit

Hella 2378-TP DuraLED ® Combi-S Trailer Lighting Kit

Part Number 2378-TP

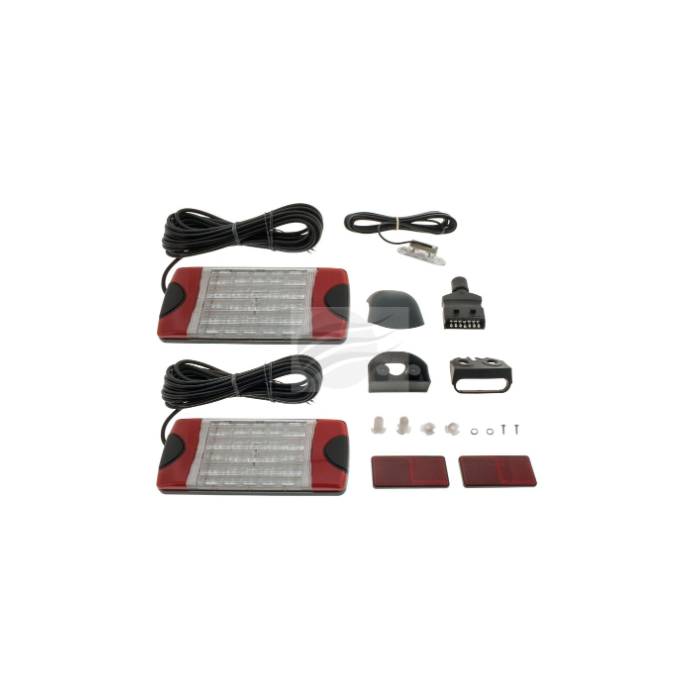

Kit Contents

Each trailer lamp kit contains:

• 2 x 2378 DuraLED Combi-S stop/rear position and rear direction indicator lamp with 6m sheathed multi-core cable.
• 2 x 2923 Red retro reflector
• 1 x 2559 LED licence plate lamp with 5m sheathed multi-core cable.
• 1 x 4921 7 pole flat plug

Rearlight - DuraLED Combi-S - LED - 24/12V - mounting/Bolted - ECE/ADR/GGVS - Lens Colour: transparent - Cable: 6000/5000mm - Plug: open cable ends/Male - 7-pin connector - left/right - Kit

Features

• Length: 222mm - Width: 96mm - Height: 25mm - Lamp Type: LED - for CV trailers
• Light functions: 5 - with taillight (LED)/with stop light (LED)/with indicator (LED)/with number plate light (LED)/with reflector
• Registration Type: ECE/ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
• Housing Colour: Red/Black - Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: mounting/Bolted - Fastening Type: for horizontal fastening/for vertical fastening

Specifications

• Part number: 2378-TP
• Hella number: 2VB 980 613-801
• Barcode (EAN): 9416325237969
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: for horizontal fastening / for vertical fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 25 mm
• Width: 96 mm
• Length: 222 mm
• Light Function: with indicator (LED)
• Power Consumption: 11 W
• Number of light functions: 5
• Cable Length: 5000 mm
• Plug Type: Male
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved / ECE approved
• Housing Colour: red/black
• Lens Colour: transparent
• Lens Material: Nylon
• Reverse polarity protection: Yes
• Number of pins: 7
• Quantity Unit: Kit
• Packaging: Box
• Product line: DuraLED

for CV trailers Assy./disassy. by qualified personnel required!
