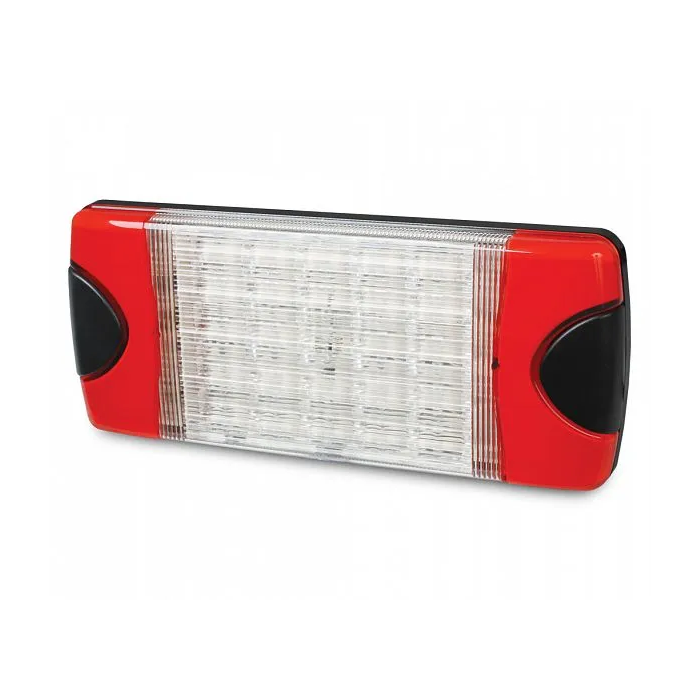

Hella 2378DTCS DuraLED Combi-S - Heavy Duty - Night Light, DT Connector and HCS

Hella 2378DTCS DuraLED Combi-S - Heavy Duty - Night Light, DT Connector and HCS

Hella 2378DTCS DuraLED Combi-S - Heavy Duty - Night Light, DT Connector and HCS

The now iconic DuraLED^® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED^® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED^® range has been continuously upgraded to the latest material and electronic component technology.

Suitable for commercial and boat trailers

Super slim profile – Iconic Design
The new evolution of the DuraLED^® Combi features a depth of just 25mm.

Plug & Play
Easy installation

Night light function
Rear position lamp can be illuminated independently from remaining marker lamps for low power consumption.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Optic appears clear until illuminated

Rearlight - LED - 12/24V - mounting/Horizontal Screw Fitting/Vertical Screw Fitting - ADR/GGVS - Lens Colour: transparent - Rear

Features

• Length: 222mm - Width: 25mm - Height: 96mm - Lamp Type: LED - with mounting parts
• Light functions: 4 - with stop light (LED)/with position light (LED)/with indicator (LED)/with marker lamp (LED)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R6/01/R7/02 - Prot.type (IP Code): IP6K9K/IP6K7
• Diffusing Lens Material: Polyamid 12 - Lens Colour: transparent
• Mounting Type: mounting/Horizontal Screw Fitting/Vertical Screw Fitting

Specifications

• Part number: 2378DTCS
• Hella number: 2SD 980 602-201
• Barcode (EAN): 9416325228820
• Brand: Hella
• Fitting Position: Rear
• Voltage: 12 / 24 V
• Light Design: LED
• Lamp Type: LED
• Number of light functions: 4
• Light Function: with indicator (LED) / with marker lamp (LED) / with position light (LED) / with stop light (LED)
• Lens Colour: transparent
• Mounting Type: Horizontal Screw Fitting / Vertical Screw Fitting / mounting
• Length: 222 mm
• Width: 25 mm
• Height: 96 mm
• Lens Material: Polyamid 12
• Power Consumption: 12 W
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• fulfils ECE standard: R6/01 / R7.02
• Registration Type: ADR/GGVS approved

with attachment parts Assy./disassy. by qualified personnel required!
