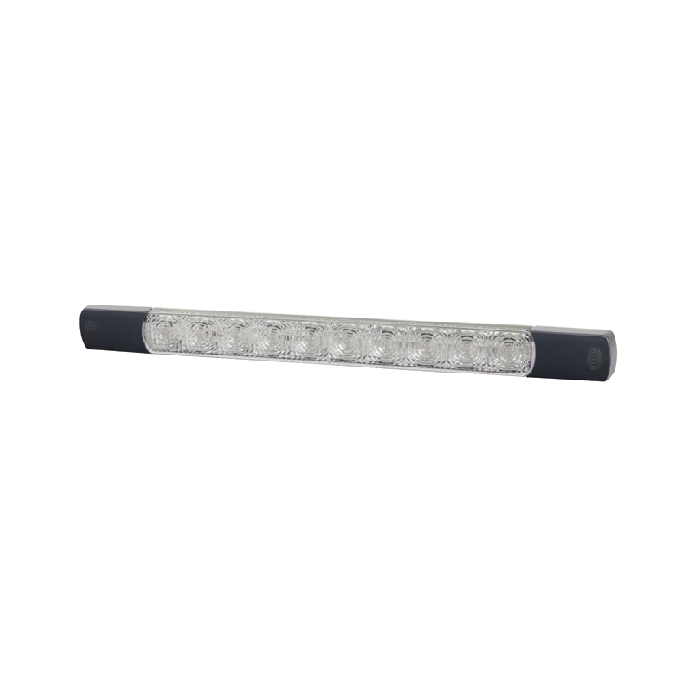

Hella 2318 LED Stop/Rear Position Lamp - Surface Mount - 12 Volt

Hella 2318 LED Stop/Rear Position Lamp - Surface Mount - 12 Volt

Hella 2318 LED Stop/Rear Position Lamp - Surface Mount - 12 Volt

Mounting: Suitable for horizontal and vertical mounting.

Power Consumption

Stop: 3W

Rear Position: <0.5W

Protection

• Reverse polarity protection.
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length: Pre-wired with 0.3m cable.

Lens Material: Grilamid®

Compliance

ADR 49/00

Rearlight - Strip Lamp - LED - 12V - Bolted/Vertical Screw Fitting/Horizontal Screw Fitting - Lens Colour: transparent - Cable: 300mm - Front - Quantity: 1

Features

• Length: 283mm - Width: 11mm - Height: 25mm - Lamp Type: LED - with bolts/screws
• Light functions: 2 - with stop light (LED)/with position light (LED)
• Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: Bolted/Vertical Screw Fitting/Horizontal Screw Fitting

Specifications

• Part number: 2318
• Hella number: 2SB 980 887-001
• Barcode (EAN): 9416325233763
• Brand: Hella
• Fitting Position: Front
• Mounting Type: Bolted
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 V
• Light Function: with position light (LED)
• Power Consumption: 0.5 W
• Number of light functions: 2
• Lens Colour: transparent
• Cable Length: 300 mm
• Length: 283 mm
• Height: 25 mm
• Width: 11 mm
• Lens Material: Nylon
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Product line: Strip Lamp

with bolts/screws Assy./disassy. by qualified personnel required!
