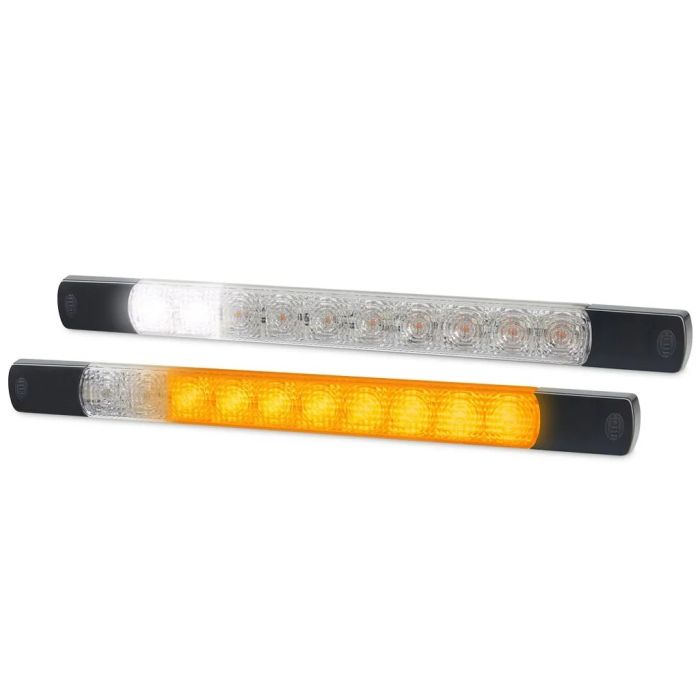

With an easy to install surface mount design, an ultra low profile of 11mm and narrow width of only 25mm the strip lamp is ideal for installation in space restricted applications. These lamps can also be mounted vertically or horizontally.

The Surface Mount Strip lamp features an extremely durable Grilamid^® lens that is impact, UV and chemical resistant. Ultra-efficient LEDs offer increased reliability while reducing power consumption, maintenance and operational costs.

Each lamp is also completely sealed for protection against dust, temporary water immersion and high-pressure/steam jet cleaning for long term reliability.

Proudly designed and manufactured in New Zealand and supported with a 5 year warranty for complete peace of mind.

• Compact and low profile design
• Low power consumption
• Grilamid^® lens for increased durability
• Ultra long service life
• Easy installation surface mount

Direction Indicator - Strip Lamp - LED - 12V - Bolted/Vertical Screw Fitting/Horizontal Screw Fitting - ADR/GGVS - Lens Colour: transparent - Cable: 3000mm - Front - Quantity: 1

Features

Length: 284mm - Width: 10mm - Height: 25mm - Lamp Type: LED - with bolts/screws
Light functions: 2 - with indicator (LED)/with position light (LED)
Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
Diffusing Lens Material: Nylon - Lens Colour: transparent
Mounting Type: Bolted/Vertical Screw Fitting/Horizontal Screw Fitting

Specifications

Part number: 2110-12V
Hella number: 2BE 980 819-301
Barcode (EAN): 9416325247456
Brand: Hella
Fitting Position: Front
Mounting Type: Bolted
Light Design: LED
Lamp Type: LED
Voltage: 12 V
Light Function: with indicator (LED)
Power Consumption: 1 W
Number of light functions: 2
Lens Colour: transparent
Cable Length: 3000 mm
Length: 284 mm
Height: 25 mm
Width: 10 mm
Lens Material: Nylon
Protection Type per ISO 20653: IP6K7 / IP6K9K
Reverse polarity protection: Yes
Registration Type: ADR/GGVS approved
Product line: Strip Lamp

with bolts/screws Assy./disassy. by qualified personnel required!

More Information

More Information
Manufacturer	Hella
hella_sap	980.819-301
Barcode	9416325247456
