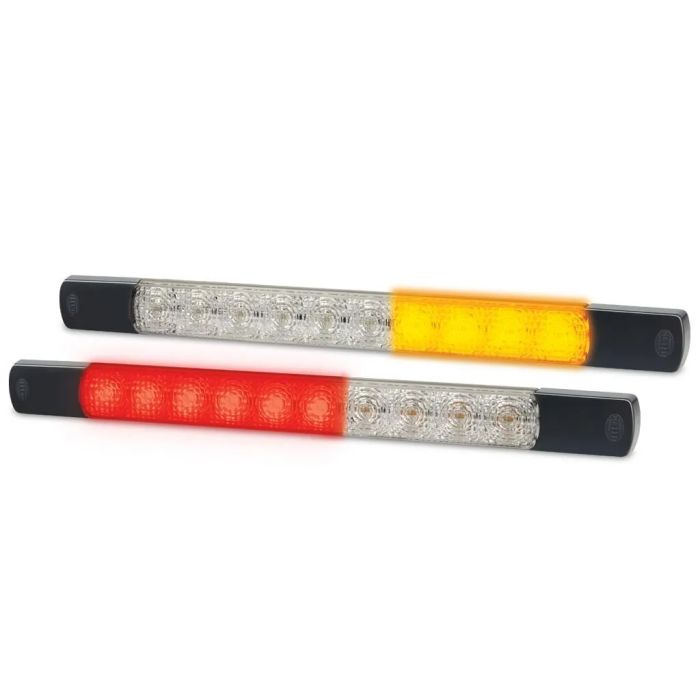

Hella 2375-12V LED Stop/Rear Position/Rear Direction Indicator Lamp - Surface Mount

Hella 2375-12V LED Stop/Rear Position/Rear Direction Indicator Lamp - Surface Mount

With an easy to install surface mount design, an ultra low profile of 11mm and narrow width of only 25mm the strip lamp is ideal for installation in space restricted applications. These lamps can also be mounted vertically or horizontally.

Featuring an ultra durable Grilamid^® nylon lens for extreme impact, UV, chemical and stress resistance. The optic appears clear until illuminated.

Ultra-efficient LEDs offer increased reliability while reducing power consumption, maintenance and operational costs. Each lamp is also completely sealed for protection against dust, temporary water immersion and high-pressure/steam jet cleaning for long term reliability. Proudly designed and manufactured in New Zealand and supported with a 5 year warranty for complete peace of mind.

• Ultra slim with a profile height of only 11mm
• Low power consumption (2W)
• Grilamid^® lens for increased durability
• Ultra long service life
• Surface mount

Rearlight - Strip Lamp - LED - 12V - Bolted/Vertical Screw Fitting/Horizontal Screw Fitting - ADR/GGVS - Lens Colour: transparent - Cable: 2500mm - Front - Quantity: 1

Features

• Length: 284mm - Width: 11mm - Height: 25mm - Lamp Type: LED - with bolts/screws
• Light functions: 3 - with stop light (LED)/with indicator (LED)/with position light (LED)
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: Bolted/Vertical Screw Fitting/Horizontal Screw Fitting

Specifications

• Part number: 2375-12V
• Hella number: 2SD 980 819-001
• Barcode (EAN): 9416325246008
• Brand: Hella
• Fitting Position: Front
• Mounting Type: Bolted
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 V
• Light Function: with indicator (LED) / with position light (LED) / with stop light (LED)
• Power Consumption: 4.5 W
• Number of light functions: 3
• Lens Colour: transparent
• Cable Length: 2500 mm
• Registration Type: ADR/GGVS approved
• Length: 284 mm
• Height: 25 mm
• Width: 11 mm
• Lens Material: Nylon
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Product line: Strip Lamp

with bolts/screws Assy./disassy. by qualified personnel required!
