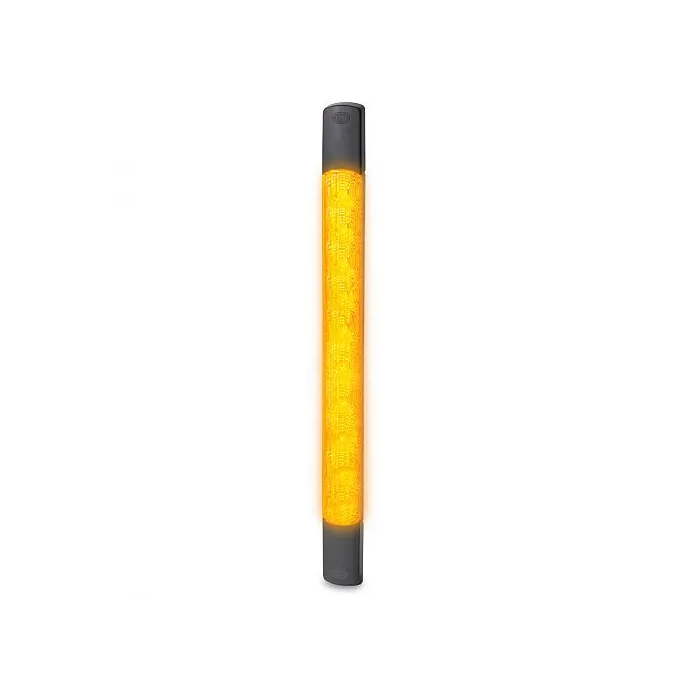

Hella 2109-24V LED Front Direction Indicator Lamp - Horizontal Mount (24 Volt)

Hella 2109-24V LED Front Direction Indicator Lamp - Horizontal Mount (24 Volt)

Hella 2109-24V LED Front Direction Indicator Lamp - Horizontal Mount - 24 Volt

Power Consumption 3W

Protection

• Reverse polarity protection.
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length: Pre-wired with 2.5m of sheathed multi-core cable. (Blister packs with 0.5m cable)

Lens Material: Grilamid®

Compliance

ADR 6/00: Cat 1

Horizontal

E24

5869 Vertical

E24

5890

ECE R6/01

Direction Indicator - Strip Lamp - LED - 24V - Bolted/Horizontal Screw Fitting - ADR/GGVS - Lens Colour: transparent - Cable: 2500mm - Front - Quantity: 1

Features

• Length: 283mm - Width: 11mm - Height: 25mm - Lamp Type: LED - with bolts/screws
• Light functions: 1 - with indicator (LED)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R6/01 - Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: Bolted/Horizontal Screw Fitting

Specifications

• Part number: 2109-24V
• Hella number: 2BA 980 888-401
• Barcode (EAN): 9416325233749
• Brand: Hella
• Fitting Position: Front
• Mounting Type: Bolted
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 V
• Light Function: with indicator (LED)
• Power Consumption: 3 W
• Number of light functions: 1
• Lens Colour: transparent
• Cable Length: 2500 mm
• fulfils ECE standard: R6/01
• Length: 283 mm
• Height: 25 mm
• Width: 11 mm
• Lens Material: Nylon
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Registration Type: ADR/GGVS approved
• Product line: Strip Lamp

with bolts/screws Assy./disassy. by qualified personnel required!
