Hella 2318-24V LED Stop/Rear Position Lamp - Surface Mount - 24V

Hella 2318-24V LED Stop/Rear Position Lamp - Surface Mount - 24V

Hella 2318-24V LED Stop/Rear Position Lamp - Surface Mount - 24V

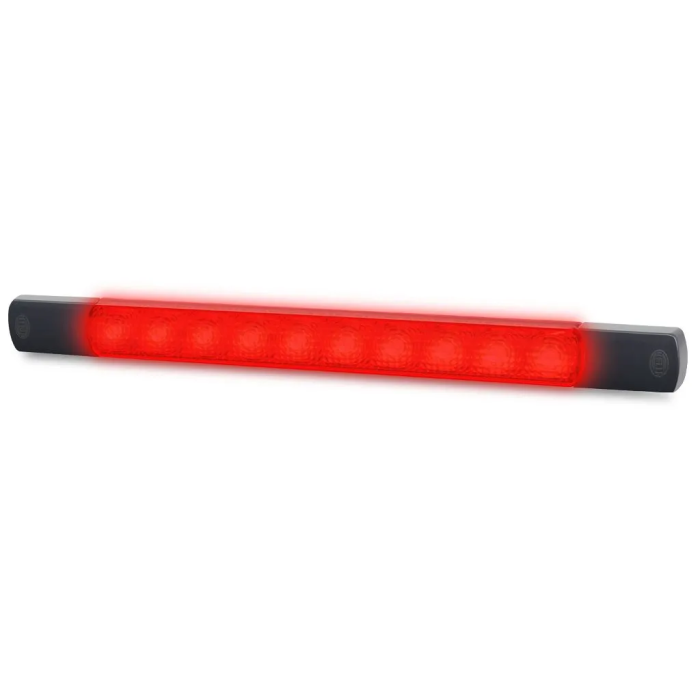

Surface mount LED stop/rear position lamp that features Enhanced Definition Technology (EDT) and is designed with an ultra wide visibility optic for significantly improved side visibility.

Featuring a low profile, ultra durable Grilamid^® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated.

• Ultra slim with a profile height of only 11mm.
• Low power consumption.
• Grilamid^® lens.
• Ultra long service life.
• Surface mount.

Rearlight - Strip Lamp - LED - 24V - Bolted/Vertical Screw Fitting/Horizontal Screw Fitting - Lens Colour: transparent - Cable: 300mm - Front - Quantity: 1

Features

• Length: 283mm - Width: 11mm - Height: 25mm - Lamp Type: LED - with bolts/screws
• Light functions: 2 - with stop light (LED)/with position light (LED)
• Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: Bolted/Vertical Screw Fitting/Horizontal Screw Fitting

Specifications

• Part number: 2318-24V
• Hella number: 2SB 980 887-201
• Barcode (EAN): 9416325233770
• Brand: Hella
• Fitting Position: Front
• Mounting Type: Bolted
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 V
• Light Function: with position light (LED)
• Power Consumption: 0.5 W
• Number of light functions: 2
• Lens Colour: transparent
• Cable Length: 300 mm
• Length: 283 mm
• Height: 25 mm
• Width: 11 mm
• Lens Material: Nylon
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Product line: Strip Lamp

with bolts/screws Assy./disassy. by qualified personnel required!
