Surface Mount LED Safety DayLights™ designed to fit flat-fronted vehicles. Comes either as a single lamp, or as a kit. The lamp is ADR compliant and features a Grilamid® lens to protect against impact damage.

Power Consumption 3W

Protection Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts 1009 Single lamp 12V (Horizontal mount)
1009-24V Single lamp 24V (Horizontal mount)
1009V Single lamp 12V (Vertical mount)
1009V-24V Single lamp 24V (Vertical mount)
9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)

Lens Material Grilamid®

Compliance ADR 76/00 E24 5869 ECE R87/00

Kit Contents 2 x LED Safety DayLights™
4 x Mounting screws
4 x Screw caps
1 x Changeover relay
1 x Instruction sheet

LED-Daytime Running Light - Strip Lamp - 12V - ADR/GGVS - transparent - Cable: 2500mm - Front - Set - Quantity: 1

Features

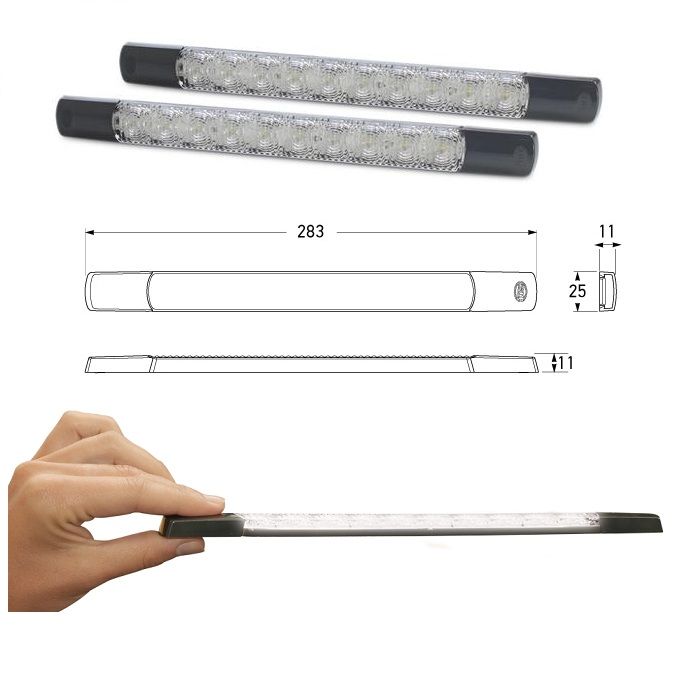

Length: 283mm - Width: 11mm - Height: 25mm - Lamp Type: LED - with bolts/screws
Light functions: 1 - with daytime running light (LED)
Registration Type: ADR/GGVS - Fulfils ECE norm.: R87 - fulfils ADR/GGVS norm: 76/00 - Prot.type (IP Code): IP6K7/IP6K9K
Diffusing Lens Material: Nylon - Lens Colour: transparent
Mounting Type: Bolted/Horizontal Screw Fitting

Specifications

Part number: 5619V
Hella number: 2PT 980 880-901
Barcode (EAN): 9416325231707
Brand: Hella
Fitting Position: Front
Mounting Type: Bolted
Light Design: LED
Lamp Type: LED
Voltage: 12 V
Light Function: with daytime running light (LED)
Power Consumption: 3 W
Number of light functions: 1
Lens Colour: transparent
Cable Length: 2500 mm
fulfils ADR/GGVS standard: 76/00
Registration Type: ADR/GGVS approved
fulfils ECE standard: R87
Length: 283 mm
Height: 25 mm
Width: 11 mm
Lens Material: Nylon
Protection Type per ISO 20653: IP6K7 / IP6K9K
Reverse polarity protection: Yes
Quantity Unit: Set
Product line: Strip Lamp

with bolts/screws Assy./disassy. by qualified personnel required!

More Information

More Information
Manufacturer	Hella
hella_sap	980.880-901
Barcode	9416325231707
