Hella 5619 LED Safety DayLights™ Kit - Surface Mount

Hella 5619 LED Safety DayLights™ Kit - Surface Mount

Hella 5619 LED Safety DayLights™ Kit - Surface Mount

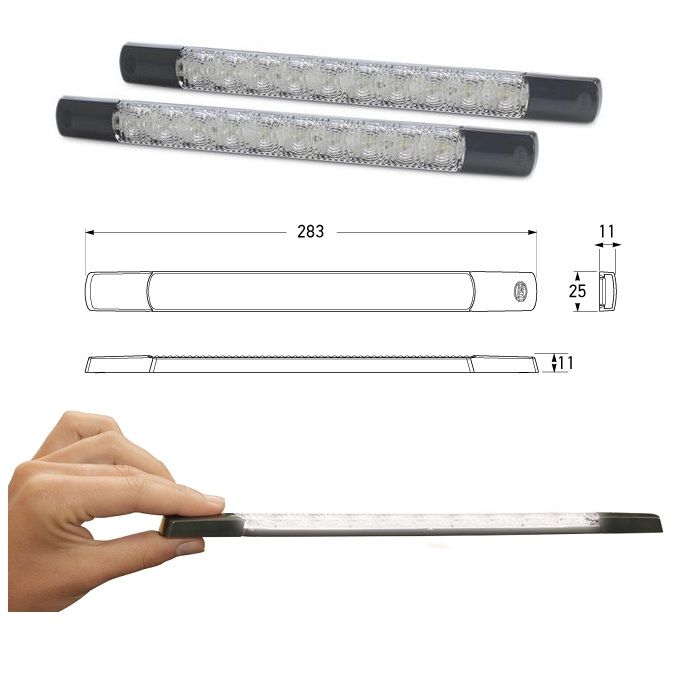

Surface Mount LED Safety DayLights™ designed to fit flat-fronted vehicles. Comes either as a single lamp, or as a kit. The lamp is ADR compliant and features a Grilamid® lens to protect against impact damage.

Power Consumption 3W

Protection Reverse polarity protection. IP 6K7 (Protection against dust and temporary water immersion) IP 6K9K (Protection against dust and high-pressure/steam jet cleaning) Cable Length Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts 1009 Single lamp 12V (Horizontal mount) 1009-24V Single lamp 24V (Horizontal mount) 1009V Single lamp 12V (Vertical mount) 1009V-24V Single lamp 24V (Vertical mount) 9.2652.09 White screw caps (Pack of 4) 9.1009.09 Charcoal screw caps (Pack of 4) 9.1009.10 Chrome plated screw caps (Pack of 4)

Lens Material Grilamid®

Compliance ADR 76/00 E24 5869 ECE R87/00

Kit Contents 2 x LED Safety DayLights™ 4 x Mounting screws 4 x Screw caps 1 x Changeover relay 1 x Instruction sheet.

LED-Daytime Running Light Set - Strip Lamp - 12V - ADR/GGVS - Cable: 2500mm - Vehicle Front - Set

HELLA daytime running light is not only safer but also more environmentally friendly than conventional low beam.

With their low energy consumption, they contribute to a better recognisability of the vehicle.

Daytime running lights have almost become an everyday sight on our streets. New vehicles have been supplied with daytime running lights as standard for a number of years now, and these lights are also being retrofitted to more and more older vehicles including the innovative daytime running light solutions by HELLA that are available for many vehicle models.

Features

• Height: 25mm - Lamp Type: LED - Number of LEDs: 8
• Light functions: 1 - with daytime running light (LED)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R87/R7 - fulfils ADR/GGVS norm: 76/00 - Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Polyamid 12
• Mounting Type: Bolted - Fastening Type: Horizontal fastening
• Luminaire for "surface mounting" with 10 high-power LEDs.
• Two lateral fixing screws with caps.
• Extremely low installation height

Specifications

• Part number: 5619
• Hella number: 2PT 980 880-801
• Barcode (EAN): 9416325217312
• Brand: Hella
• Mounting Type: Bolted
• Fastening Type: Horizontal fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 V
• Fitting Position: Vehicle Front
• Height: 25 mm
• Light Function: with daytime running light (LED)
• Protection Type per ISO 20653: IP6K7
• Number of light functions: 1
• fulfils ECE standard: R7 / R87
• Registration Type: ADR/GGVS approved
• fulfils ADR/GGVS standard: 76/00
• Number of LEDs: 8
• Cable Length: 2500 mm
• Power Consumption: 3 W
• Reverse polarity protection: Yes
• Lens Material: Polyamid 12
• Quantity Unit: Set
• Product line: Strip Lamp

Assy./disassy. by qualified personnel required!
