Hella 5636 LED Safety Daylight Daylights Kit - Easy-Fit

Hella 5636 LED Safety Daylight Daylights Kit - Easy-Fit

Hella 5636 LED Safety Daylight Daylights Kit - Easy-Fit

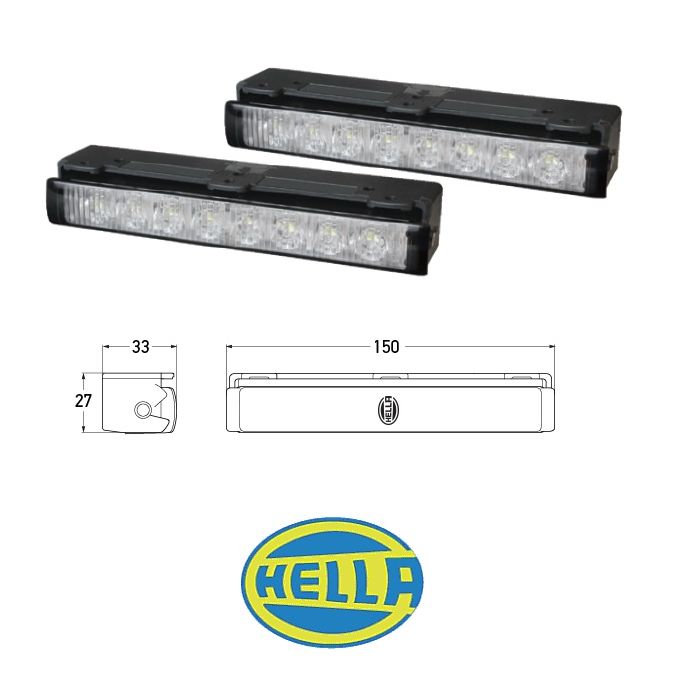

Forward Facing Signal Lamps, designed to be mounted on vehicles with flat fronts, or on motorbikes. The lamps are an Easy-Fit installation, usually requiring no extra parts. Once the wiring is complete and the bracket is fitted, the LED lamp easily clips into place and installation is complete.

Your kit includes:

• 2 x LED Safety DayLights™
• 2 x LED Safety DayLights™
• 2 x Mounting brackets
• 2 x Mounting brackets
• 6 x Mounting screws
• 6 x Mounting screws
• 1 x Changeover relay
• 1 x Smart controller relay
• 1 x Instruction sheet
• 1 x Terminal kit
• 1 x Instruction sheet

Part Numbers 5636 12 VOLT 5636BL (Blister Pack) h 5636-24V 24 VOLT Mounting Suitable for horizontal mounting.

Power Consumption 2W

Protection Reverse polarity protection.

IP 6K7 (Protection against dust and temporary water immersion)

IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length Pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts:

• 1013 Single lamp 12V
• 1013-24V Single lamp 24V

Lens Material High impact acrylic.

Compliance:

• ADR 76/00 E24 5875
• ECE R87/00 Kit Contents 5636/...-24V 5636-BL

LED-Daytime Running Light Set - LEDayLine Zero - 12V - ADR/GGVS/ECE - transparent - Front Axle both sides - Set - Quantity: 1

Features

• Length: 150mm - Width: 23mm - Height: 27mm - Lamp Type: LED - Number of LEDs: 8
• Light functions: 1 - with daytime running light (LED)
• Registration Type: ADR/GGVS/ECE - fulfils ADR/GGVS norm: 45/01
• Housing with Plastic Lid - Housing Colour: Black - Lens Colour: transparent
• Mounting Type: Screw Connection/mounting - Fastening Type: for horizontal fastening

Specifications

• Part number: 5636
• Hella number: 2PT 980 970-801
• Barcode (EAN): 9416325226505
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: for horizontal fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 V
• Fitting Position: Front Axle both sides
• Height: 27 mm
• Width: 23 mm
• Length: 150 mm
• Light Function: with daytime running light (LED)
• Number of light functions: 1
• fulfils ADR/GGVS standard: 45/01
• Registration Type: ADR/GGVS approved / ECE approved
• Number of LEDs: 8
• Housing Type: Housing with Plastic Lid
• Housing Colour: black
• Lens Colour: transparent
• Quantity Unit: Set
• Product line: LEDayLine

Assy./disassy. by qualified personnel required!
