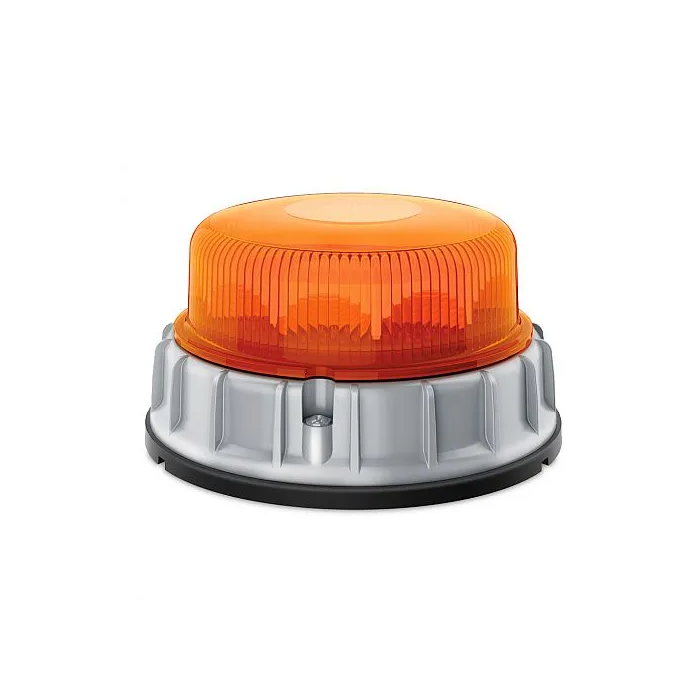

Hella 2XD011557101 K-LED 2 Amber Beacon

Hella 2XD011557101 K-LED 2 Amber Beacon

LED-Strobe-type Beacon - K-LED 2.0 F - 12/24V - Amber - Screw Connection/mounting - Cable: 1450mm - Plug: open cable ends - Quantity: 1

A sensor measures the ambient brightness and controls the change between day / night level based on the measured values. This guarantees you the best possible warning effectiveness

The K-LED 2.0 beacon provides both a rotating and a flashing warning signal in one product. The signal is generated by means of an electronic concept and thus without moving parts and offers 16 different flash sequences. Thanks to the integrated "day/night mode", the brightness is adjusted to the ambient light by means of a sensor. This ensures increased visibility during the day and the avoidance of glare at night. The beacon can be connected to an operating voltage of 10 - 32 V. It is also very flat and has an impact-resistant polycarbonate light bonnet that protects against shocks. The height of the K-LED 2.0 is approx. 87.6 mm (F) to 160.6 mm (R), depending on the design. It meets the requirements of IP67 and is therefore dustproof and can be immersed in water for short periods. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

Features

• Lamp Type: LED - Number of LEDs: 20 - Power consumption: 30W
• With flashing warning signal - Lens Colour: yellow (amber)
• Registration Type: SAE/ADR/GGVS - Fulfils ECE norm.: R65/R10 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: Aluminium - Housing Colour: Silver - Diffusing Lens Material: PC (Polycarbonate)
• Height: 88mm - Electromagnetic Compatibility (EMC)
• The K-LED 2.0 F can switch between a rotating or flashing warning signal by switch or programming
• The beacon has been developed without moving parts and thus offers optimum protection against strong vibrations and shocks
• The K-LED 2.0 is characterised by a long service life
• The impact-resistant, extremely flat polycarbonate light dome guarantees particularly reliable protection against knocks, e.g. from branches

Specifications

• Part number: 2XD011557101
• Hella number: 2XD 011 557-101
• Barcode (EAN): 4082300398687
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Outer Diameter 1: 169 mm
• Height: 88 mm
• Light Function: with flashing warning signal / with rotating warning signal
• Light colour: yellow (amber)
• Number of LEDs: 20
• Plug Type: open cable ends
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved / ECE approved / SAE approved
• fulfils ECE standard: R10 / R65 / TA2
• fulfils SAE standard: J845 Class 1
• fulfils EMC/CISPR standard: Class 5
• fulfils test standard: RCM
• Lens Colour: yellow (amber)
• Housing Colour: silver
• Flash rate per minute: 122
• Power Consumption: 30 W
• Housing material: Aluminium
• Temperature range from: -40°C
• Temperature range to: 60°C
• Weight: 843 g
• Cable Length: 1450 mm
• Lens Material: PC (Polycarbonate)
• Product line: K-LED 2.0

Electromagnetic Compatibility (EMC) Assy./disassy. by qualified personnel required!
