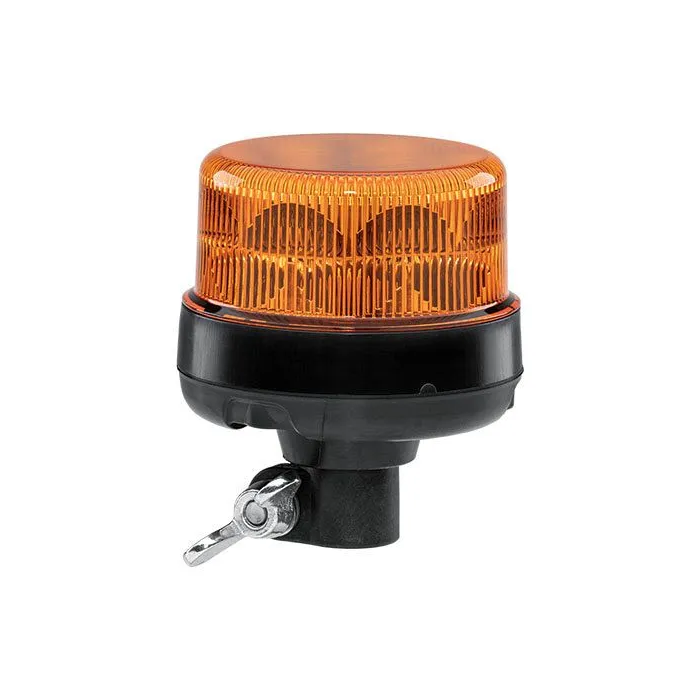

Hella 2XD066146011 K-LED Nano Beacon - Flexible Pipe Socket Mounting

Hella 2XD066146011 K-LED Nano Beacon - Flexible Pipe Socket Mounting

LED-Strobe-type Beacon - K-LED Nano Nano - 12/24V - yellow (amber) - Flexible pipe sockets - Cable: 150mm - Plug: DIN standard - Quantity: 1

Despite its compact dimensions, the K-LED Nano gives out an above-average light intensity. HELLA’s smallest homologated beacon to date generates a long-range, amber warning signal by means of flashing light. The standard version for fixed mounting is characterised by a slightly curved base which, with a bolt circle diameter of 130 mm, stays true to the usual HELLA mounting points. Further mounting options deviating from this standard are possible (e.g. a bolt circle diameter of 43 mm or 85 mm). In addition, a variant with flexible pipe socket mounting is also available. The shock-absorbing and vibration-damping base briefly tilts the beacon by up to 45° and cushions even strong impacts. Thanks to this option and the complete sealing of the beacon, the K-LED Nano can therefore also be used both in vibration-intensive environments and also in dusty ones. As a Fit&Forget solution, following installation the beacon turns into a reliable and long-lasting vehicle component.

Features

• Lamp Type: LED - Number of LEDs: 16 - Power consumption: 19W
• With flashing warning signal - Lens Colour: yellow (amber)
• Registration Type: ADR/GGVS/ECE - fulfils ECE norm: R10/R65/TA1 - fulfils SAE norm: J845 Class 1 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber) - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Height: 125mm
• Very compact design with high light intensity
• Vibration and impact-resistant
• High degree of tightness thanks to complete sealing

Specifications

• Part number: 2XD066146011
• Hella number: 2XD 066 146-011
• Barcode (EAN): 4082300819533
• Brand: Hella
• Mounting Type: Flexible pipe sockets
• Lamp Type: LED
• Light Design: LED
• Voltage: 12 / 24 V
• Power Consumption: 19 W
• Height: 125 mm
• Outer Diameter 1: 109 mm
• Light Function: with flashing warning signal
• Number of LEDs: 16
• Light colour: yellow (amber)
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved
• fulfils ECE standard: R10 / R65 / TA1
• fulfils test standard: RCM
• Lens Colour: yellow (amber)
• Housing Colour: black
• Flash rate per minute: 126
• Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
• Temperature range from: -40°C
• Temperature range to: 60°C
• Weight: 338 g
• Lens Material: PC (Polycarbonate)
• fulfils EMC/CISPR standard: Class 5
• fulfils SAE standard: J845 Class 1
• Cable Length: 150 mm
• Plug Type ID: DIN standard
• Product line: K-LED Nano

Assy./disassy. by qualified personnel required!
