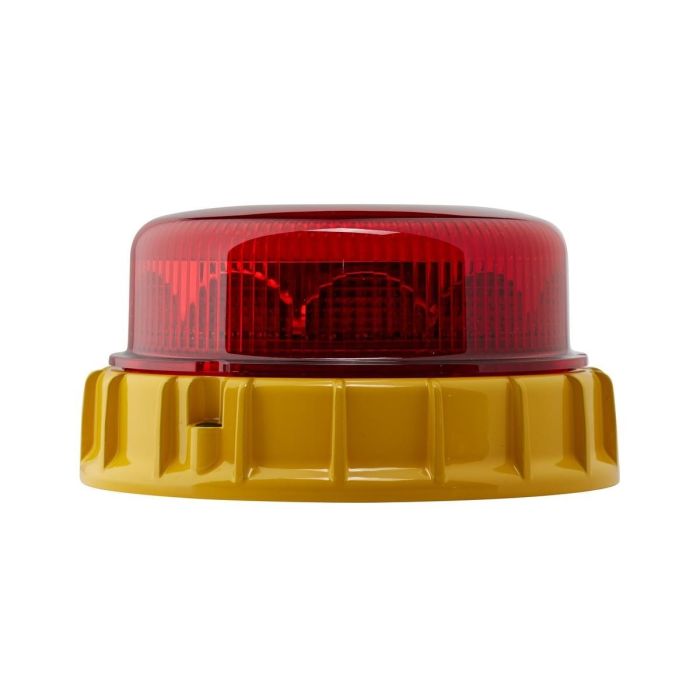

Hella 2XD 011 557-021 K-LED MINING Series Beacon, Red - Direct Mount

Hella 2XD 011 557-021 K-LED MINING Series Beacon, Red - Direct Mount

Voltage: Multivolt 9-33V DC

Wattage: 33W Max.

Flash Rate: 2.0Hz - 120 RPM (simulated)

Temp. Range: -40 degrees to +60 degrees C

Mounting: Fixed or magnetic mounting on horizontal surfaces. Optional pipe mount kit available.

Protection: High EMC resistance: meets CISPR25 class 5. Reverse polarity protection. Fully sealed against dust and moisture to IP6K7. Shock resistant to 200G.

Note: Amber and red ECE and SAE compliant: ECE R65 TA2, ECE R65, TR2, SAE J 845 Class 1.

LED-Strobe-type Beacon - K-LED Mining - 12/24V - Red - Screw Connection/mounting

HELLA beacons. Play it safe - with beacons from HELLA! Whenever a special visual warning of dangerous situations is needed, beacons are the answer. This is by far not only the case for rescue operations, but also applies to work operations with large, heavy and/or slow-moving vehicles, such as combine harvesters or heavy goods vehicles. HELLA beacons have a strong warning effect and thus signal to other road users: Attention, please be considerate - work is being done around the vehicle. In this way, our beacons make a strong contribution to more safety. A safety that is achieved, among other things, by the optimal light bundling and distribution, the resulting long range as well as the high luminous intensity of the LED technology used. HELLA beacons are also characterised by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's beacons.

Features

• Lamp Type: LED - Number of LEDs: 20 - Power consumption: 33W
• With flashing warning signal - Lens Colour: Red
• Registration Type: not permitted in the area of the StVZO/ADR/GGVS/SAE - Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: Aluminium - Housing Colour: Yellow - Diffusing Lens Material: PC (Polycarbonate)
• Ø: 169mm - Height: 88mm
• Robust beacon
• Red warning signal

Specifications

• Part number: 2XD011557021
• Hella number: 2XD 011 557-021
• Barcode (EAN): 4082300398663
• Brand: Hella
• Mounting Type: Screw Connection
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Light Function: with flashing warning signal
• Light colour: red
• Number of LEDs: 20
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Lens Colour: red
• Housing material: Aluminium
• Temperature range from: -40°C
• Temperature range to: 60°C
• Lens Material: PC (Polycarbonate)
• Light Distribution: Off-Road Illumination
• Power Consumption: 33 W
• Reverse polarity protection: Yes
• Registration Type: ADR/GGVS approved / SAE approved
• fulfils test standard: RCM
• fulfils ECE standard: R10 / R65
• Diameter: 169 mm
• Height: 88 mm
• Housing Colour: yellow
• Product line: K-LED Mining

Assy./disassy. by qualified personnel required!
