The now iconic DuraLED^® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.

‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED^® name will outlast the life of the vehicle.

Whilst keeping its design heritage and appearance the DuraLED^® range has been continuously upgraded to the latest material and electronic component technology.

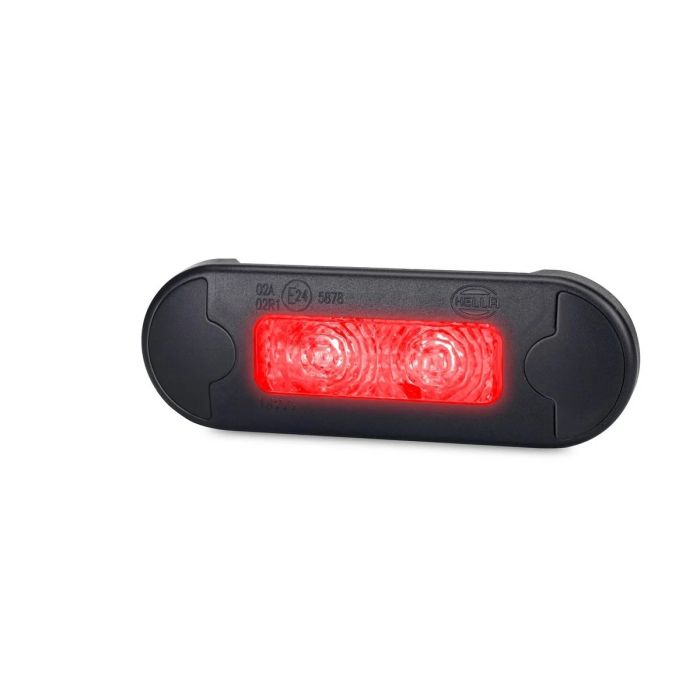

Red flush mount rear position or rear end outline LED lamp (REOL) with optional stainless steel rim.

Featuring a low profile ultra durable Grilamid^® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated.

End Outline Marker Light - DuraLED - LED - 24/12V - Bolted/mounting - ADR/GGVS - Lens Colour: Crystal clear - Cable: 500mm - Rear

Features

Length: 19mm - Width: 84mm - Height: 29mm - Lamp Type: LED - Number of LEDs: 1
Light functions: 2 - with indicator (LED)/with outline marker light (LED)
Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K9K/IP6K7
Housing Colour: Crystal clear - LED colour: Red - Lens Colour: Crystal clear
Mounting Type: Bolted/mounting - Fastening Type: Vertical fastening/Horizontal fastening

Specifications

Part number: 2310
Hella number: 2XA 980 855-301
Barcode (EAN): 9416325229483
Brand: Hella
Mounting Type: Bolted / mounting
Fastening Type: Horizontal fastening / Vertical fastening
Light Design: LED
Lamp Type: LED
Voltage: 12 / 24 V
Fitting Position: Rear
Height: 29 mm
Width: 84 mm
Length: 19 mm
Light Function: with indicator (LED) / with outline marker light (LED)
Number of light functions: 2
Protection Type per ISO 20653: IP6K7 / IP6K9K
Registration Type: ADR/GGVS approved
Number of LEDs: 1
Cable Length: 500 mm
LED Colour: red
Lens Colour: Crystal clear
Power Consumption: 0.5 W
Housing Colour: Crystal clear
Product line: DuraLED

Assy./disassy. by qualified personnel required!
