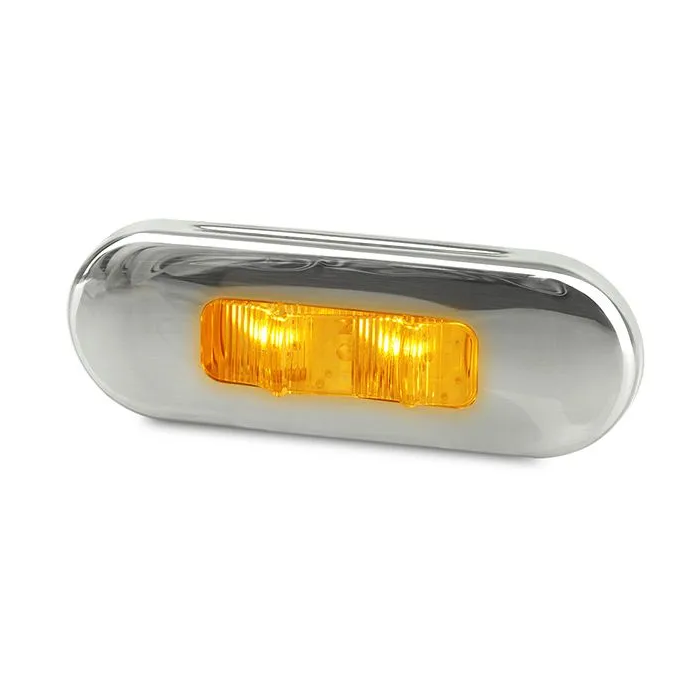

Hella 2086S DuraLED Flush Mount Supplementary Side Direction Indicator - Stainless Rim

Hella 2086S DuraLED Flush Mount Supplementary Side Direction Indicator - Stainless Rim

Hella 2086S DuraLED Flush Mount Supplementary Side Direction Indicator - Stainless Rim

The new amber side direction indicator lamps complement HELLA’s popular DuraLED® range of flush mount marker lamps for a consistent look to your vehicle. Designed and manufactured in New Zealand these lamps are compliant with the Australian Design Rules (ADR). The new marker lamps feature a low profile of only 14mm and an ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated. Stainless steel rim option available.

Interference-free EMC properties ensure no electronic interference with other electronic devices.

As with all other products in the DuraLED® range, this new lamp offers class leading energy efficiency, unmatched durability and the DuraLED® lifetime warranty.

Auxiliary Direction Indicator - DuraLED S - LED - 12/24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 500mm - Plug: open cable ends - right/left - Quantity: 1

Features

• Length: 86mm - Width: 24mm - Height: 31mm - Lamp Type: LED
• Light functions: 1 - with indicator (LED)
• Registration Type: ADR/GGVS - fulfils ADR/GGVS norm: 6/00:Cat 5 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing Colour: Chrome - Diffusing Lens Material: Nylon - Lens Colour: yellow (amber)
• Mounting Type: Screw Connection/mounting

Specifications

• Part number: 2086S
• Hella number: 2BM 980 868-321
• Barcode (EAN): 9416325248545
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 31 mm
• Width: 24 mm
• Length: 86 mm
• Light Function: with indicator (LED)
• Number of light functions: 1
• Power Consumption: 0.5 W
• fulfils ADR/GGVS standard: 6/00:Cat 5
• Registration Type: ADR/GGVS approved
• Housing Colour: chrome
• Lens Type: patterned lens
• Lens Material: Nylon
• Lens Colour: yellow (amber)
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Cable Length: 500 mm
• Plug Type: open cable ends
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
