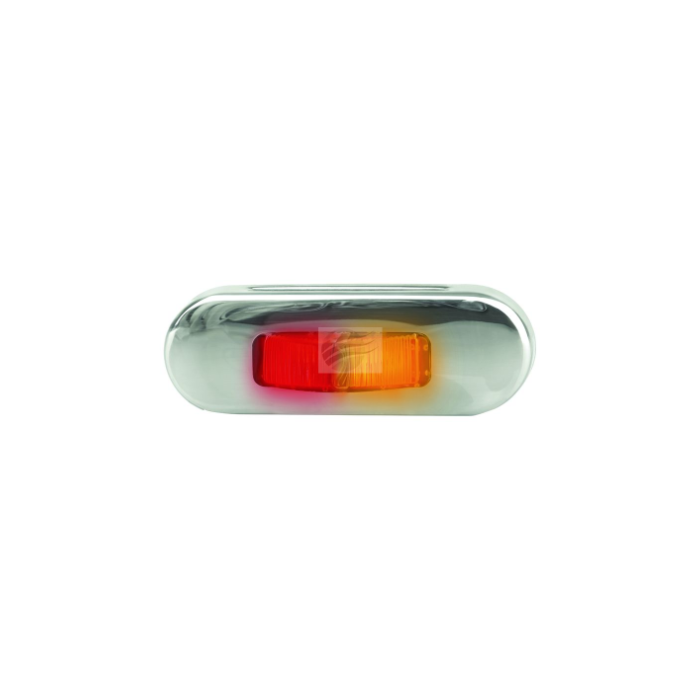

Hella 2803S LED Side Marker Lamp Amber/Red 12/24V Bezel Flush Mount

Hella 2803S LED Side Marker Lamp Amber/Red 12/24V Bezel Flush Mount

Hella 2803S LED Side Marker Lamp Amber/Red 12/24V Bezel Flush Mount

Mounting: Surface mount.

Suitable for horizontal mounting.

Voltage: Multivolt™for optimum brightness in 12 and 24 volt systems.

Power Consumption

0.5W

Protection

• Reverse polarity protection.
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.

Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

9.2310.09BULK

Black screw caps (Pack of 4)

95968500

Stainless steel rim - Polished

Lens Material: Grilamid®

Compliance

ADR 45/01

Side Marker Light - DuraLED S - LED - 12/24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: Red/yellow (amber) - Cable: 500mm - Plug: open cable ends - right/left - Quantity: 1

Features

• Length: 86mm - Width: 25mm - Height: 31mm - Lamp Type: LED
• Light functions: 1 - with side marker light
• Registration Type: ADR/GGVS - fulfils ADR/GGVS norm: 45/01 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing Colour: Chrome - Diffusing Lens Material: Nylon - Lens Colour: Red/yellow (amber)
• Mounting Type: Screw Connection/mounting - Fastening Type: for horizontal fastening

Specifications

• Part number: 2083S
• Hella number: 2PS 980 868-061
• Barcode (EAN): 9416325236986
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: for horizontal fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 31 mm
• Width: 25 mm
• Length: 86 mm
• Light Function: with side marker light
• Number of light functions: 1
• Power Consumption: 0.5 W
• Registration Type: ADR/GGVS approved
• fulfils ADR/GGVS standard: 45/01
• Housing Colour: chrome
• Lens Type: patterned lens
• Lens Material: Nylon
• Lens Colour: red / yellow (amber)
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Cable Length: 500 mm
• Plug Type: open cable ends
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
