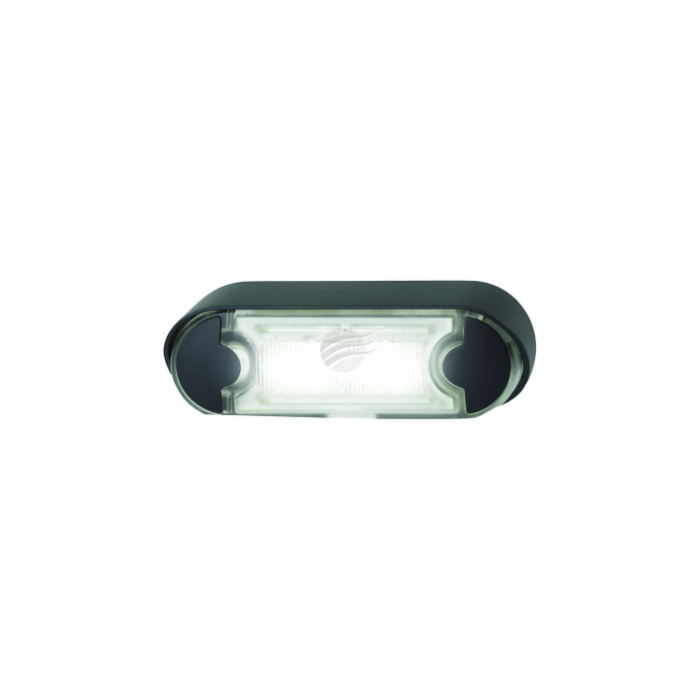

Hella 2560 LED Licence Plate Lamp 12/24V Angled Black Flush Mount Housing

Hella 2560 LED Licence Plate Lamp 12/24V Angled Black Flush Mount Housing

Hella 2560 LED Licence Plate Lamp 12/24V Angled Black Flush Mount Housing

Mounting

Surface mount.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

0.5W

Protection

• Reverse polarity protection.
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable Length

• Pre-wired with 0.5m of multi-core cable.
• Bulk pack pre-wired with 2.5m of multi-core cable.

Spare Parts

• 9.2310.09-BULK Black screw caps (Pack of 4)
• 8HG958029001 Angle mount bracket

Lens Material

Grilamid ®

Compliance

ADR 48/00

Licence Plate Light - LED - 12/24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: White - Cable: 500mm - Plug: open cable ends - right/left - Quantity: 1

Features

• Length: 89mm - Width: 17mm - Height: 33mm - Lamp Type: LED
• Light functions: 1 - with reverse light (LED)
• Registration Type: ADR/GGVS - fulfils ADR/GGVS norm: 48/00 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing Colour: Black - Diffusing Lens Material: Nylon - Lens Colour: White
• Mounting Type: Screw Connection/mounting

Specifications

• Part number: 2560
• Hella number: 2KA 980 869-001
• Barcode (EAN): 9416325237037
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 33 mm
• Width: 17 mm
• Length: 89 mm
• Light Function: with reverse light (LED)
• Number of light functions: 1
• Power Consumption: 0.5 W
• Registration Type: ADR/GGVS approved
• fulfils ADR/GGVS standard: 48/00
• Housing Colour: black
• Lens Type: patterned lens
• Lens Material: Nylon
• Lens Colour: white
• Plug Type: open cable ends
• Cable Length: 500 mm
• Protection Type per ISO 20653: IP6K7 / IP6K9K

Assy./disassy. by qualified personnel required!
