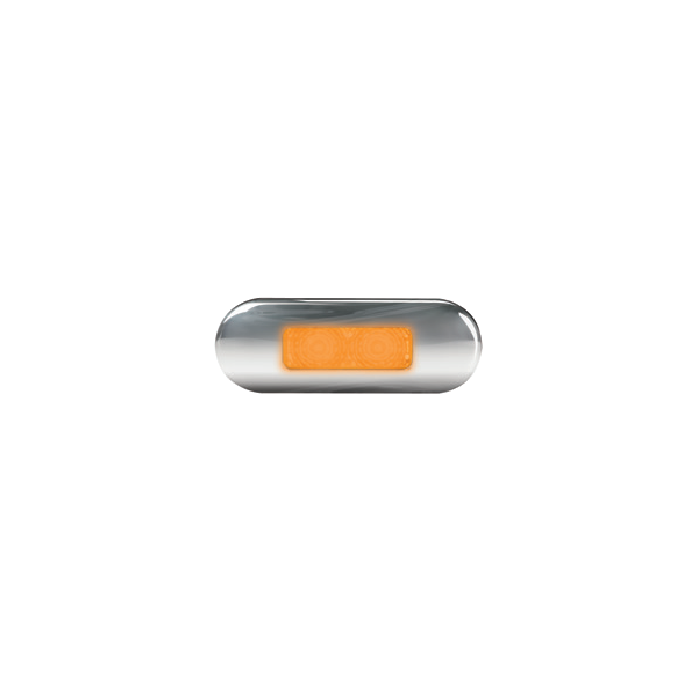

Hella 2060S DuraLED Flush Mount Front End Outline Lamp - Stainless Rim

Hella 2060S DuraLED Flush Mount Front End Outline Lamp - Stainless Rim

Hella 2060S DuraLED Flush Mount Front End Outline Lamp - Stainless Rim

Mounting: Surface mount.

Suitable for horizontal or vertical mounting.

Voltage: Multivolt™for optimum brightness in 12 and 24 volt systems.

Power Consumption: 0.5W

Protection:

• Reverse polarity protection.
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length: Pre-wired with 0.5m of sheathed multi-core cable.

Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Spare Parts

9.2310.09BULK

Black screw caps (Pack of 4)

95968500

Stainless steel rim - Polished

Lens Material: Grilamid®

Compliance

ADR 49/00

End Outline Marker Light - DuraLED - LED - 24/12V - Bolted/mounting - ADR/GGVS - Lens Colour: Crystal clear - Cable: 500mm - Front

Features

• Length: 19mm - Width: 86mm - Height: 31mm - Lamp Type: LED - Number of LEDs: 1
• Light functions: 2 - with outline marker light (LED)/with indicator (LED)
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K9K/IP6K7
• LED colour: Yellow - Lens Colour: Crystal clear
• Mounting Type: Bolted/mounting - Fastening Type: Vertical fastening/Horizontal fastening

Specifications

• Part number: 2060S
• Hella number: 2PF 980 855-211
• Barcode (EAN): 9416325229551
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: Horizontal fastening / Vertical fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Front
• Height: 31 mm
• Width: 86 mm
• Length: 19 mm
• Light Function: with indicator (LED) / with outline marker light (LED)
• Number of light functions: 2
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Number of LEDs: 1
• Cable Length: 500 mm
• LED Colour: yellow (amber)
• Lens Colour: Crystal clear
• Power Consumption: 0.5 W
• Registration Type: ADR/GGVS approved
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
