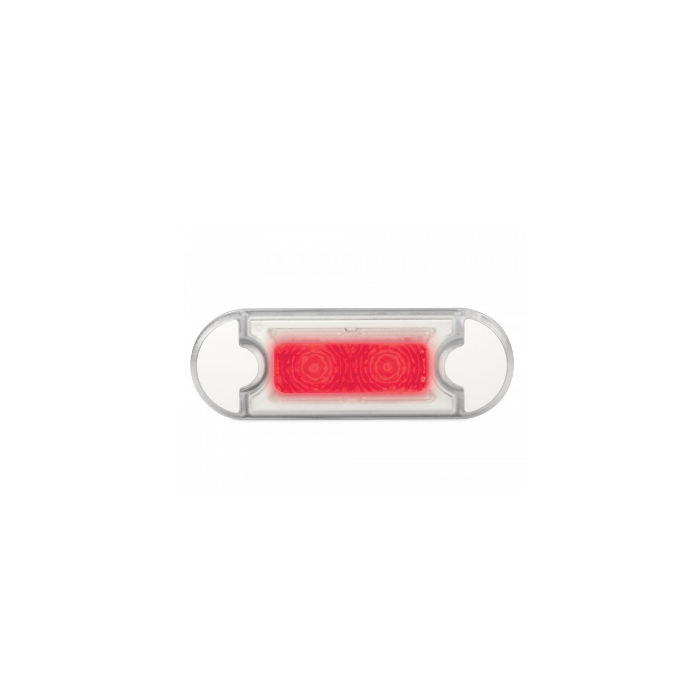

These LED Courtesy Lamps feature a shallow 9mm profile and completely sealed housing. Available in a range of colours. Optic appears clear until illuminated.

Mounting Two hole surface mount.

Voltage Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption <0.5W

Protection:

Reverse polarity protection.

IP 6K7 (Protection against dust and temporary water immersion)

IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length Pre-wired with 0.5m of sheathed multi-core cable.

Lens Material Grilamid®

Interior Light - DuraLED - LED - 12/24V - 0.5W - mounting - Lens Colour: transparent - LED colour: Red - Interior/outer

Features

Length: 84mm - Height: 29mm
Light functions: 1 - for cabin light/with outline marker light (LED) - Lamp Type: LED
Prot.type (IP Code): IP6K7/IP6K9K
Cable: 500mm

Specifications

Part number: 98085535
Hella number: 2XT 980 855-351
Barcode (EAN): 9416325232117
Brand: Hella
Fitting Position: Interior / outer
Voltage: 12 / 24 V
Mounting Type: mounting
Number of light functions: 1
Light Function: for cabin light / with outline marker light (LED)
Light Design: LED
Lamp Type: LED
Lens Colour: transparent
LED Colour: red
Cable Length: 500 mm
Protection Type per ISO 20653: IP6K7 / IP6K9K
Power Consumption: 0.5 W
Length: 84 mm
Thickness: 9 mm
Height: 29 mm
Product line: DuraLED

Assy./disassy. by qualified personnel required!

More Information

More Information
Manufacturer	Hella
hella_sap	980.855-351
Barcode	9416325232117
mpn	980.855-351
