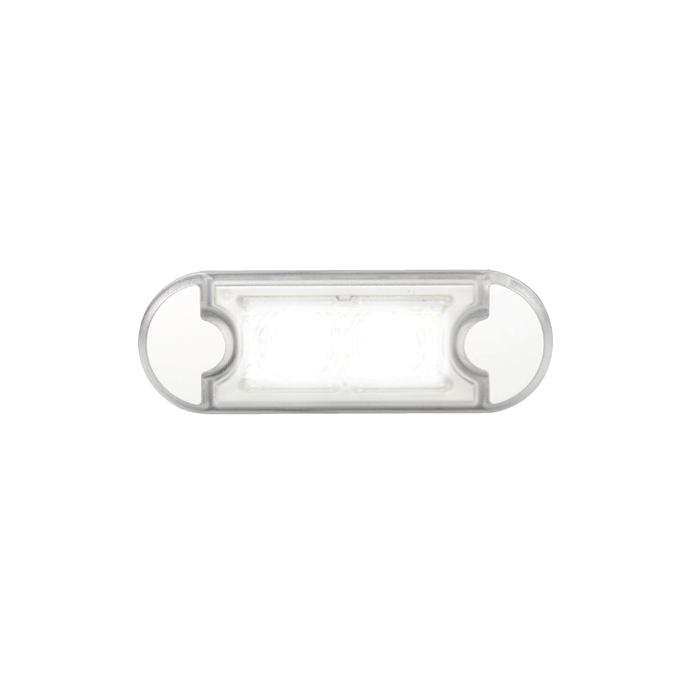

Hella 98085510 DuraLED Flush Mount Courtesy Lamp - Low Profile (White Light)

Hella 98085510 DuraLED Flush Mount Courtesy Lamp - Low Profile (White Light)

Hella Duraled White LED Courtesy Lamp 12/24V Surface Mount 500mm

Mounting

Two hole surface mount

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems

Power Consumption

<0.5W

Protection

Reverse polarity protection

IP 6K7 (Protection against dust and temporary water immersion)

IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable

Lens Material

Grilamid

Interior Light - DuraLED - LED - 12/24V - 0.5W - mounting - Lens Colour: transparent - LED colour: White - Interior/outer

Features

• Length: 84mm - Height: 29mm
• Light functions: 1 - for cabin light/with outline marker light (LED) - Lamp Type: LED
• Prot.type (IP Code): IP6K7/IP6K9K
• Cable: 500mm

Specifications

• Part number: 98085510
• Hella number: 2XT 980 855-101
• Barcode (EAN): 9416325232155
• Brand: Hella
• Fitting Position: Interior / outer
• Voltage: 12 / 24 V
• Mounting Type: mounting
• Number of light functions: 1
• Light Function: for cabin light / with outline marker light (LED)
• Light Design: LED
• Lamp Type: LED
• Lens Colour: transparent
• LED Colour: white
• Cable Length: 500 mm
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Power Consumption: 0.5 W
• Length: 84 mm
• Thickness: 9 mm
• Height: 29 mm
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
