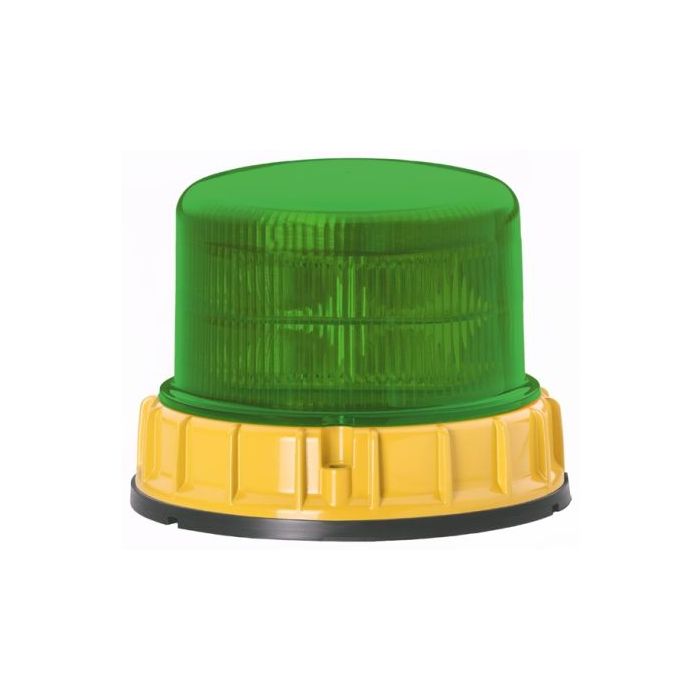

Hella 2RL012983031 Rotating Beacon Lamp Fix Mount - 12,24V (Green)

Hella 2RL012983031 Rotating Beacon Lamp Fix Mount - 12,24V (Green)

Hella 2RL012983031 Rotating Beacon Lamp Fix Mount - 12,24V (Green)

LED-Rotating Beacon - UltraRAY 2.0 - 12/24V - Green - mounting - Quantity: 1

Features

• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 20W
• Light functions: 1 - With rotating warning signal - Lens Colour: Green
• Registration Type: ECE/SAE - Fulfils ECE norm.: R65 - fulfils SAE norm: J845 class 1 - Prot.type (IP Code): IP6K7/IP6K9K
• Housing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate) - Housing Colour: Silver - Diffusing Lens Material: PC (Polycarbonate)
• Height: 131mm

Specifications

• Part number: 2RL012983031
• Hella number: 2RL 012 983-031
• Barcode (EAN): 4082300630879
• Brand: Hella
• Mounting Type: mounting
• Light Design: LED
• Lamp Type: LED
• Power Consumption: 20 W
• Voltage: 12 / 24 V
• Number of LEDs: 8
• Number of light functions: 1
• Rotating beacon RPM: 123 1/min
• Housing Colour: silver
• Housing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
• Height: 131 mm
• Weight: 850 g
• Light colour: green
• Light Function: with rotating warning signal
• Lens Colour: green
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• fulfils ECE standard: R65
• Registration Type: ECE approved / SAE approved
• fulfils SAE standard: J845 Class 1
• Temperature range from: -40°C
• Temperature range to: 60°C
• Lens Material: PC (Polycarbonate)
• Reverse polarity protection: Yes
• Product line: UltraRAY 2.0

Assy./disassy. by qualified personnel required!
