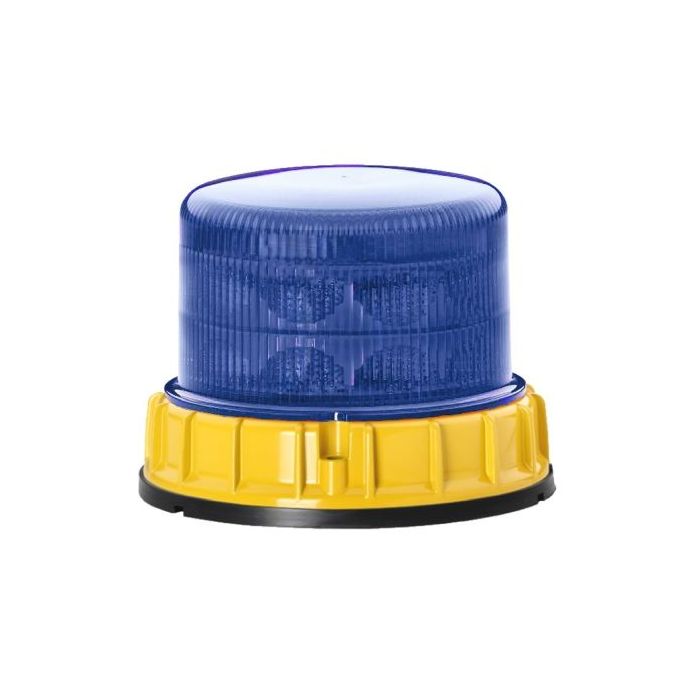

Hella 2RL012983011 Rotating Beacon Lamp Fix Mount - 12,24V (Blue)
Special Price
$710.26
Regular Price
$747.64
In stock
SKU
2RL012983011
Hella 2RL012983011 Rotating Beacon Lamp Fix Mount - 12,24V (Blue) is available to buy in increments of 1
Hella 2RL012983011 Rotating Beacon Lamp Fix Mount - 12,24V (Blue)
Hella 2RL012983011 Rotating Beacon Lamp Fix Mount - 12,24V (Blue)
Hella 2RL012983011 Rotating Beacon Lamp Fix Mount - 12,24V (Blue)
| Mounting Type | mounting, Bolted |
|---|---|
| Voltage | 12 V, 24 V |
| Outer Diameter 1 | 169 mm |
| Height | 123 mm |
| Light Function | With rotating warning signal |
| Voltage from | 10 V, until 30 V |
| Lamp Type | LED |
| Light Design | LED |
| Prot.type (IP Code) | IP6K7, IP6K9K |
| Registration Type | ADR/GGVS approved, SAE approved |
| fulfils ECE standard | R10, R65 |
| fulfils test standard | RCM |
| Supplementary Article/Supplementary Info 2 | Electromagnetic Compatibility (EMC) |
| Lens Colour | blue |
| Housing Colour | yellow |
| Power consumption | 20 W |
| Housing material | Cast Aluminium |
| Temperature range from | -40 °C, until +60 °C |
| Diffusing Lens Material | PC (Polycarbonate) |
| Reverse polarity protection | Yes |
| Quantity | 1 |
LED-Rotating Beacon - UltraRAY 2.0 - 12/24V - mounting/Bolted - Quantity: 1
Features
- Lamp Type: LED - Power consumption: 20W
- With rotating warning signal - Lens Colour: Blue
- Registration Type: ADR/GGVS/SAE - Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IP6K7/IP6K9K
- Housing material: Cast Aluminium - Housing Colour: Yellow - Diffusing Lens Material: PC (Polycarbonate)
- Height: 123mm - Electromagnetic Compatibility (EMC)
Specifications
- Part number: 2RL012983011
- Hella number: 2RL 012 983-011
- Barcode (EAN): 4082300629835
- Brand: Hella
- Mounting Type: Bolted / mounting
- Voltage: 12 / 24 V
- Outer Diameter 1: 169 mm
- Height: 123 mm
- Light Function: with rotating warning signal
- Voltage from: 10 V
- Voltage to: 30 V
- Lamp Type: LED
- Light Design: LED
- Protection Type per ISO 20653: IP6K7 / IP6K9K
- Registration Type: ADR/GGVS approved / SAE approved
- fulfils ECE standard: R10 / R65
- fulfils test standard: RCM
- Lens Colour: blue
- Housing Colour: yellow
- Power Consumption: 20 W
- Housing material: Cast Aluminium
- Temperature range from: -40°C
- Temperature range to: 60°C
- Lens Material: PC (Polycarbonate)
- Reverse polarity protection: Yes
- Product line: UltraRAY 2.0
Electromagnetic Compatibility (EMC) Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 012.983-011 |
| Barcode | 4082300629835 |
