Hella 2161-CS Jumbo-S LED Rear Direction Indicator Lamp with HCS Technology

Hella 2161-CS Jumbo-S LED Rear Direction Indicator Lamp with HCS Technology

Hella 2161-CS Jumbo-S LED Rear Direction Indicator Lamp with HCS Technology

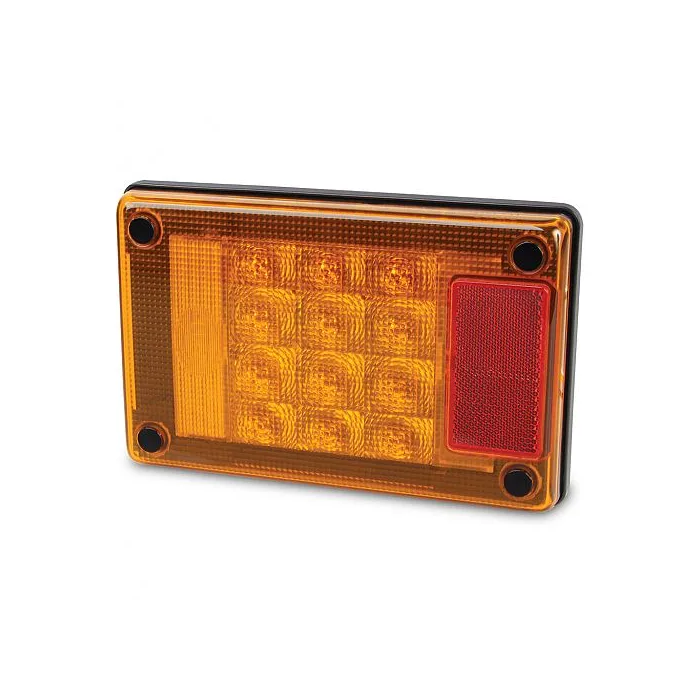

Jumbo-S LED rear direction indicator lamp with inbuilt 23cm² red retro reflector. Low profile design allows surface mounting with no additional housing. Shockproof and fully sealed to withstand temporary water submersion and high-pressure washing.

Hella Compatibility Solution HCS
Hella P/N 2161-CS features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA 24V HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.
Note: Lamp is not compatible with 12V HCS units.

Direction Indicator - Jumbo-S - LED - 24/12V - Bolted/Vertical Screw Fitting/Horizontal Screw Fitting - ADR/GGVS/ECE - Lens Colour: yellow (amber) - Cable: 200mm - Rear - Quantity: 1

Features

• Length: 199mm - Width: 24mm - Height: 129mm - Lamp Type: LED - with reflector
• Light functions: 2 - with indicator (LED)
• Registration Type: ADR/GGVS/ECE - Prot.type (IP Code): IP6K7/IP6K9K
• Lens Colour: yellow (amber)
• Mounting Type: Bolted/Vertical Screw Fitting/Horizontal Screw Fitting

Specifications

• Part number: 2161-CS
• Hella number: 2BR 980 761-021
• Barcode (EAN): 9416325230021
• Brand: Hella
• Fitting Position: Rear
• Mounting Type: Bolted / Horizontal Screw Fitting / Vertical Screw Fitting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Light Function: with indicator (LED)
• Number of light functions: 2
• Lens Colour: yellow (amber)
• Cable Length: 200 mm
• Power Consumption: 6 W
• Registration Type: ADR/GGVS approved / ECE approved
• Length: 199 mm
• Height: 129 mm
• Width: 24 mm
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Reverse polarity protection: Yes
• Product line: Jumbo-S

with reflector Assy./disassy. by qualified personnel required!
