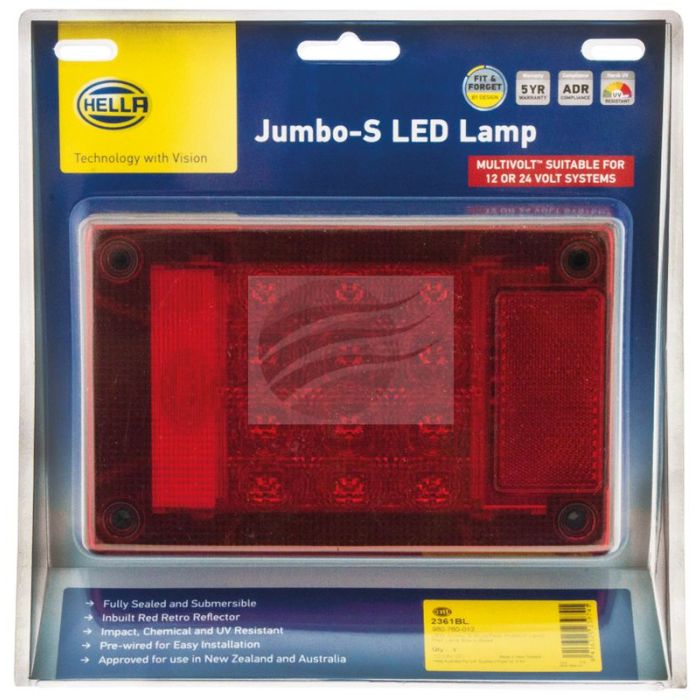

Hella 2361BL Jumbor LED Stop/ Rear POS Lamp 12/24V Horizontal or Vertical Mount

Hella 2361BL Jumbor LED Stop/ Rear POS Lamp 12/24V Horizontal or Vertical Mount

Hella 2361BL Jumbor LED Stop/ Rear POS Lamp 12/24V Horizontal or Vertical Mount

Mounting: Retrofit to update existing Jumbo or Designline lamps.

Suitable for horizontal or vertical mounting.

Voltage: Multivolt™for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W

Rear position: 1W

Protection:

• Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
• IP 6K7 (Protection against dust and temporary water immersion)
• IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length: Pre-wired with 200mm of cable.

Compliance

ADR 47/00

ADR 49/00

Tail Light - Jumbo-S - 12/33V - mounting - Lens Colour: Red - Cable: 200mm - Rear

Features

• Length: 199mm - Width: 24mm - Height: 129mm
• Light functions: 3 - with position light (LED)/with stop light (LED)/with reflector
• Prot.type (IP Code): IP6K7/IP6K9K
• Lens Colour: Red
• Mounting Type: mounting

Specifications

• Part number: 2361BL
• Hella number: 2TA 980 760-012
• Barcode (EAN): 9416325239741
• Brand: Hella
• Mounting Type: mounting
• Voltage: 12 / 33 V
• Fitting Position: Rear
• Height: 129 mm
• Width: 24 mm
• Length: 199 mm
• Light Function: with position light (LED) / with reflector / with stop light (LED)
• Number of light functions: 3
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Cable Length: 200 mm
• Lens Colour: red
• Power Consumption: 6 W
• Container Type: Blister Pack
• Product line: Jumbo-S

Assy./disassy. by qualified personnel required!
