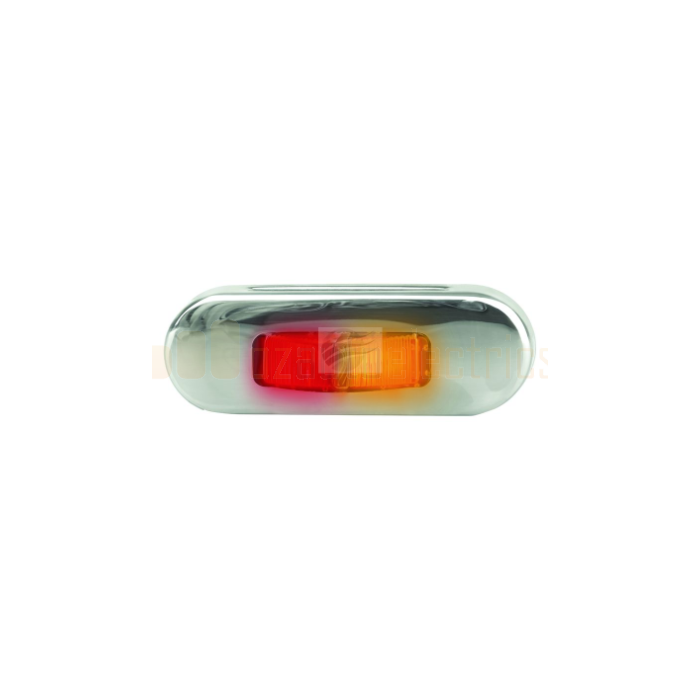

Hella 2083SBULK DuraLED Flush Mount Slim Side Marker Lamp - Stainless Rim - Pack of 16

Hella 2083SBULK DuraLED Flush Mount Slim Side Marker Lamp - Stainless Rim - Pack of 16

Hella 2083SBULK DuraLED Flush Mount Slim Side Marker Lamp - Stainless Rim - Pack of 16

The new red/amber side marker lamps complement HELLA’s popular DuraLED^® Flush Mount Marker range. Featuring a low profile of only 15mm and an ultra durable Grilamid^® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated. With optional stainless steel rim.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Side Marker Light - DuraLED S - LED - 12/24V - Bolted - ADR/GGVS - Lens Colour: transparent - Cable: 2500mm - Lateral Mounting - Quantity: 16

Features

• Width: 84mm - Height: 29mm - Lamp Type: LED
• Light functions: 1 - with marker lamp (LED)
• Registration Type: ADR/GGVS - fulfils ADR/GGVS norm: 45/01 - Prot.type (IP Code): IP6K7/IP6K9K
• LED colour: Red/Amber - Polished - Diffusing Lens Material: Polyamid 12 - Lens Colour: transparent
• Mounting Type: Bolted - Fastening Type: Horizontal fastening

Specifications

• Part number: 2083SBULK
• Hella number: 2PS 980 868-077
• Barcode (EAN): 9416325236993
• Brand: Hella
• Fitting Position: Lateral Mounting
• Mounting Type: Bolted
• Voltage: 12 / 24 V
• Fastening Type: Horizontal fastening
• LED Colour: red / yellow (amber)
• Lens Colour: transparent
• Number of light functions: 1
• Light Function: with marker lamp (LED)
• Reverse polarity protection: Yes
• Lamp Type: LED
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Cable Length: 2500 mm
• Power Consumption: 0.5 W
• Width: 84 mm
• Height: 29 mm
• Thickness: 15 mm
• Registration Type: ADR/GGVS approved
• fulfils ADR/GGVS standard: 45/01
• Lens Material: Polyamid 12
• Rims: with steel rim
• Surface: Polished
• Light Design: LED
• Product line: DuraLED

Assy./disassy. by qualified personnel required!
