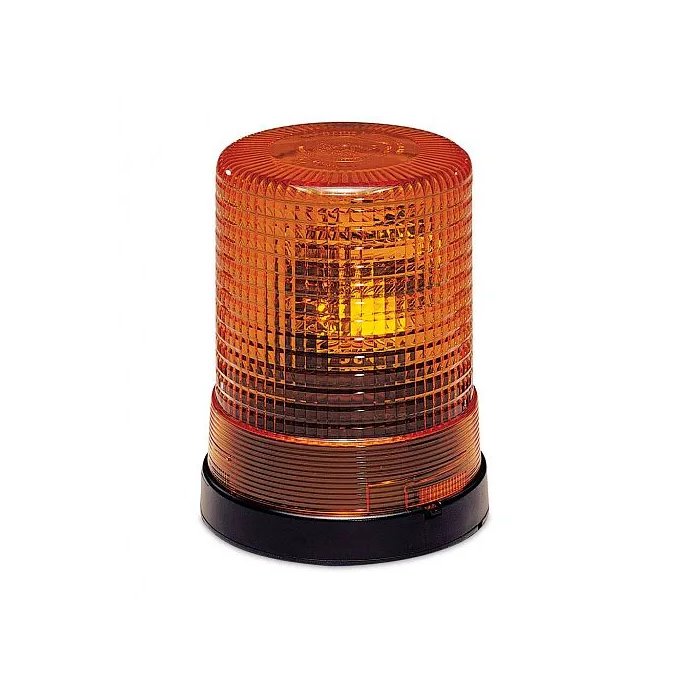

Hella 1724 Revolving Beacon KL 700 - Amber - 12 Volt

Hella 1724 Revolving Beacon KL 700 - Amber - 12 Volt

Rotating Beacon - KL 700 - 24V - Bolted/Horizontal Screw Fitting

Features

• Lamp Type: H1 - Power consumption: 70W
• With rotating warning signal - Lens Colour: yellow (amber) - Optical Impression: Amber-coloured
• Prot.type (IP Code): IP5KX/IPX4K/IPX9K
• Housing material: Plastic - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Height: 210mm

Specifications

• Part number: 1724
• Hella number: 2RL 905 143-001
• Barcode (EAN): 9314365003790
• Brand: Hella
• Mounting Type: Bolted / Horizontal Screw Fitting
• Number of Holes: 3
• Voltage: 24 V
• Lamp Type: H1
• Power Consumption: 70 W
• Temperature range from: -40°C
• Temperature range to: 60°C
• Lens Material: PC (Polycarbonate)
• Lens Colour: yellow (amber)
• Housing material: Plastic
• Housing Colour: black
• Optical Impression: Amber-coloured
• Light Function: with rotating warning signal
• Protection Type per ISO 20653: IP5KX / IPX4K / IPX9K
• Housing Diameter: 165 mm
• Height: 210 mm
• Product line: KL 700

Assy./disassy. by qualified personnel required!
