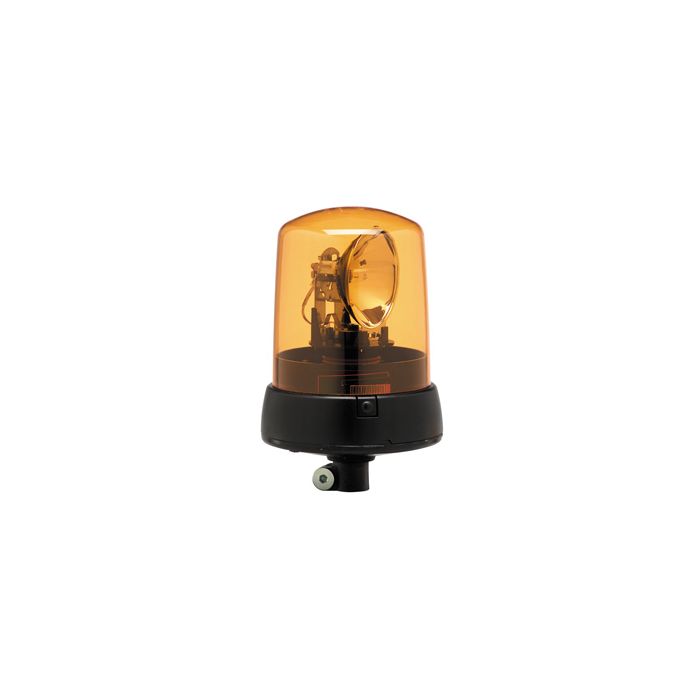

Hella 1735 KL7000 Series Amber - Flexible Pipe Mount, Dual Voltage 12/24V DC (12V Globe)
Special Price
$272.75
Regular Price
$287.10
In stock
SKU
1735
Hella 1735 KL7000 Series Amber - Flexible Pipe Mount, Dual Voltage 12/24V DC (12V Globe) is available to buy in increments of 1
Hella KL7000 Series Amber - Flexible Pipe Mount, Dual Voltage 12/24V DC (12V Globe)
Hella KL7000 Series Amber - Flexible Pipe Mount, Dual Voltage 12/24V DC (12V Globe)
1735 |
Amber - Flexible Pipe Mount, Dual Voltage 12/24V DC (12V Globe) |
Description |
Dual voltage circuitry enables unit to operate on either 12V or 24V DC input voltage. Impact-resistant polycarbonate lens. |
|
Voltage |
Dual Voltage - 12/24V DC |
|
Wattage |
12V DC - 55W |
|
Mounting |
Flexible pipe mounting. Tubular base incorporates connection plug. Must be used in conjunction with connecting piece, Part No. 8007, or other Hella 2-pole beacon mounts. |
|
Globes to suit |
12V H1 (C1255) |
|
Current Draw |
12V DC - 5.5A |
|
Protection |
IP5K4K9K |
|
RF Supression |
VDE 0879, Class 3, FM5. |
|
Rotation |
160 +/- 30 rpm |
Accessories & Spare Parts |
|
| 9.1726.01 | Blue PC lens |
| 9.1727.01 | Red PC lens |
| 9.1728.01 | Amber PC lens |
| 9.1726.52 | 12/24V Motor |
| 9.1726.23 | Reflector base assembly |
| 9.1737.91 | Drive belts (set of two) |
| 8007 | Connecting piece (pipe mount) |
| 8007FM | 2-Pole beacon mount, flat |
| 8007RA | 2-Pole beacon mount, 90o |
| 8007SCR | 2-Pole beacon mount, screw |
Rotating Beacon - KL 7000 - 12/24V - Single pivoted lever/Horizontal Screw Fitting
Features
- Lamp Type: H1 - Power consumption: 55/70W
- With rotating warning signal - Lens Colour: yellow (amber)
- Prot.type (IP Code): IP5K4K/IPX9K
- Housing material: Plastic - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
- Height: 242mm
Specifications
- Part number: 1735
- Hella number: 2RL 905 145-001
- Barcode (EAN): 9314365038228
- Brand: Hella
- Mounting Type: Horizontal Screw Fitting / Single pivoted lever
- Voltage: 12 / 24 V
- Lamp Type: H1
- Power Consumption: 55 / 70 W
- Temperature range from: -40°C
- Temperature range to: 60°C
- Lens Material: PC (Polycarbonate)
- Lens Colour: yellow (amber)
- Housing material: Plastic
- Housing Colour: black
- Light Function: with rotating warning signal
- Protection Type per ISO 20653: IP5K4K / IPX9K
- Housing Diameter: 155 mm
- Height: 242 mm
- Product line: KL 7000
Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 905.145-001 |
| Barcode | 9314365038228 |
