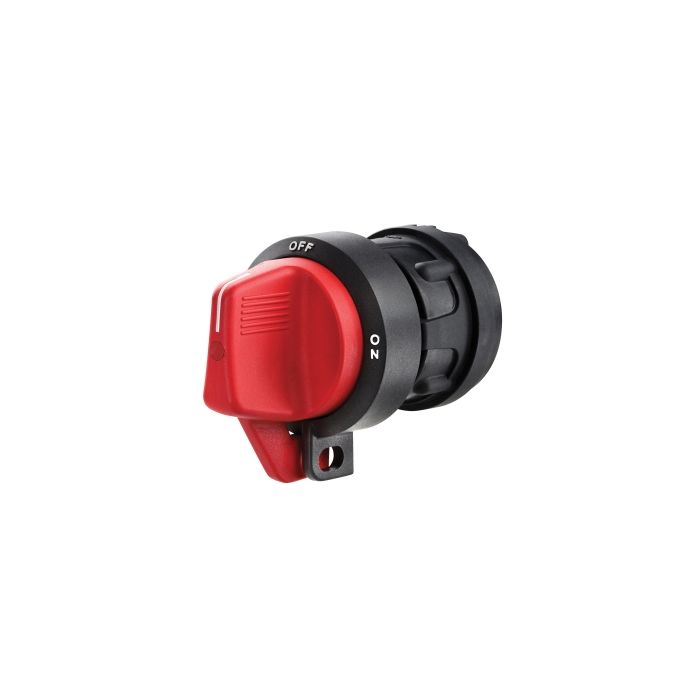

Hella HM7592B Battery Master Lockout Switch, Red Handle

Hella HM7592B Battery Master Lockout Switch, Red Handle

Battery Master Lockout Switch, Red Handle

The HELLA heavy-duty 2-pole lockable battery lock out switch, provides a reliable power disconnection and safety cut-off that protects the vehicle against tampering, theft and battery drain. It also protects service personnel from electrical hazards during service operations.

Technical information:

• Waterproof and Dustproof to IP67
• Tested to 200G shock for 10 000 cycles.
• Sealed design allows switch to be mounted in the best location regardless of environment.
• Large handle makes it easy to operate with gloved hands.
• Composite-engineered polymer housing that will not corrode.
• 300A continuous current rating at 12V and 250A at 24V
• Temperature operating range -40°C to + 85°C.
• Divider on base prevents accidental shorting of battery cables.
• Easy to read designations on bezel and 90° switch travel make it easy to identify switch position.

Main Switch, battery - Shift Actuation - 12/24V - Number of connectors: 2 - mounting - On/Off Switch - Colour: Red

Features

• Capacity at 12V: 300 A - Capacity at 24V: 250 A
• Prot.type (IP Code): IP67

Specifications

• Part number: HM7592B
• Hella number: 9MK 910 109-001
• Barcode (EAN): 9314365570896
• Brand: Hella
• Mounting Type: mounting
• Colour: red
• Voltage: 12 / 24 V
• Capacity at 24V: 250 A
• Capacity at 12V: 300 A
• Actuation Type: Slide Operation
• Number of connectors: 2
• Switch Function: On/Off Switch
• Protection Type per ISO 20653: IP67

Assy./disassy. by qualified personnel required!
