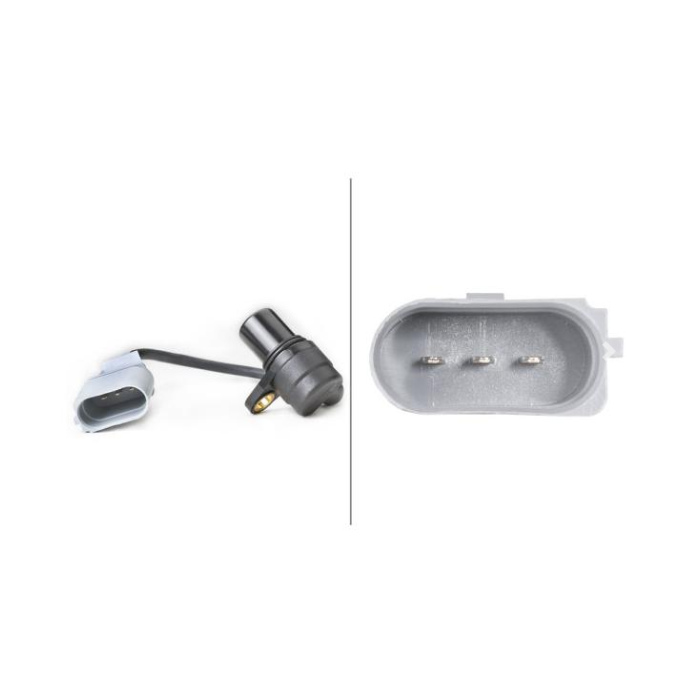

Hella Crankshaft Angle Sensor

Hella Crankshaft Angle Sensor

Hella Crankshaft Angle Sensor

• Integral component of the vehicle engine management system
• Angle sensor allows the ECU to calculate correct timing and control
• Designed to your vehicle OE standards
• Direct fit- no coding required

Compatible Vehicles:

Sensor, crankshaft pulse - 12V - 3-pin connector - Cable: 215mm - with seal

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits from this long-standing original equipment expertise with the successful transfer of its OE know-how. Speed sensors such as the camshaft or crankshaft sensor are required to map the engine speed and the exact position of the crankshaft. The control unit uses these values to calculate the injection and ignition pulses. HELLA offers a leading range of top-quality products for almost every application.

Features

• fits e.g. VW Golf V (1K1) (please check exact vehicle application)
• Inductive Sensor
• Highest measuring precision in a wide ambient temperature range
• Low maintenance and downtime due to high quality
• Broad product range
• Compliance with OEM specification
• Brief Information
• *** HELLA Electronics OE competence for over 60 years.

Specifications

• Part number: 6PU009163181
• Hella number: 6PU 009 163-181
• Barcode (EAN): 4082300163827
• Brand: Hella
• Number of mounting bores: 1
• Voltage: 12 V
• Resistor: 900 ohm
• Tolerance: 10 %
• Cable Length: 215 mm
• Sensor Type: Inductive Sensor
• Number of pins: 3

with gasket/seal Assy./disassy. by qualified personnel required!
