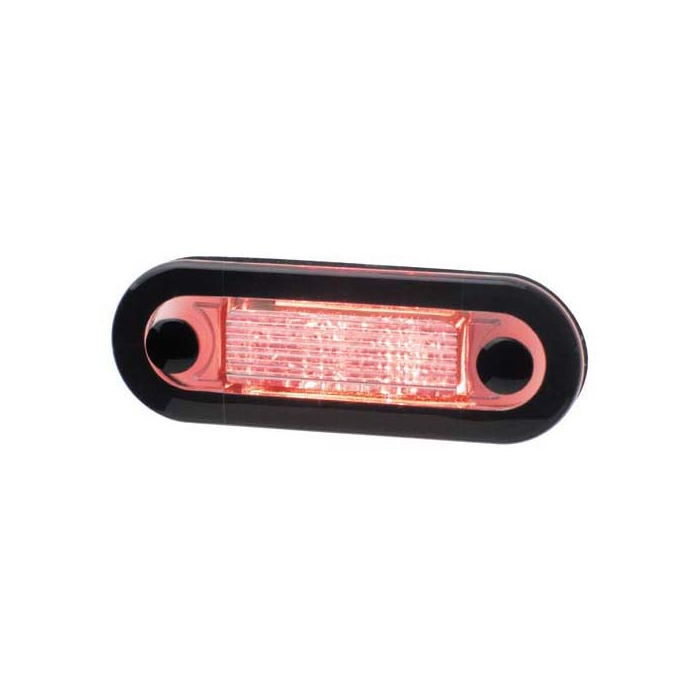

Hella 95968070 LED Wide Rim Rectangular Courtesy Step Lamp - Clear Lens, (Red Light)
Special Price
$33.50
Regular Price
$35.26
In stock
SKU
95968070
Hella 95968070 LED Wide Rim Rectangular Courtesy Step Lamp - Clear Lens, (Red Light) is available to buy in increments of 1
Hella 95968070 LED Step Lamp - Red
Hella 95968070 LED Wide Rim Rectangular Courtesy Step Lamp - Clear Lens, (Red Light)
Hella 95968070 LED Step Lamp - Red
95968070 |
LED Step Lamp - Red |
Description |
LED Step Lamp featuring special lens optic to illuminate floors and steps. Optic appears clear until illuminated. |
|
Voltage |
Multivolt (8-28V DC) |
|
Wattage |
0.5W |
|
Mounting |
Flush mount (gasket and screw caps included). |
|
Protection |
Fully sealed against dust and moisture to IP67. |
|
Cable Length |
13 centimetres |
Accessories & Spare Parts |
|
| 95968500 | Wide rim cover, polished stainless steel |
| 95968502 | Wide rim cover, gold plated stainless steel |
| 95968506 | Wide rim cover, satin stainless steel |
| Spare | Parts |
| 9GD959517007 | Wide rim seal |
| 9HD959182007 | Clear screw cap |
| 9HD959182017 | Amber screw cap |
| 9HD959182027 | Red screw cap |
| 9HD959182037 | Black screw cap |
Door Entry Light - 12/24V - 1W - Bolted - Lens Colour: Crystal clear - LED colour: Red - inner/outer
Features
- Length: 84mm - Height: 29mm - Fitting Depth: 20mm
- Housing Colour: Black - Lamp Type: LED
- Prot.type (IP Code): IP6K6/IP6K7
- Cable: 120mm
Specifications
- Part number: 95968070
- Hella number: 2XT 959 680-761
- Barcode (EAN): 9416325158172
- Brand: Hella
- Mounting Type: Bolted
- Fitting Position: inner / outer
- Voltage: 12 / 24 V
- Lamp Type: LED
- LED Colour: red
- Lens Colour: Crystal clear
- Power Consumption: 1 W
- Reverse polarity protection: Yes
- Protection Type per ISO 20653: IP6K6 / IP6K7
- Cable Length: 120 mm
- Housing Colour: black
- Length: 84 mm
- Height: 29 mm
- Fitting Depth: 20 mm
Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 959.680-761 |
| Barcode | 9416325158172 |
