Hella Wide Rim Strip LED - Red Illuminated, 24V DC

LED-Warning Light - Strip Lamp - 24V - Bolted/mounting - Cable: 2500mm

All signal functions of this luminaire series are equipped with a wide-beam optic, which provides excellent lateral visibility and thus contributes to road safety

True to HELLA's "Fit and Forget by Design" philosophy, the Slimline product range is characterised by low power consumption, robust design and resistant Grilamid lens

HELLA warning lights. Maximum diversity. More application possibilities. More warning effect. Warning systems actively contribute to securing the place of operation. The high warning effect of the additional warning signal not only serves to make the stationary vehicle easier and faster to recognise, but at the same time secures the area of operation of the working team. The combination of efficient light-emitting diodes (LEDs) and precision optics achieves uniform illumination and a very high signalling effect. HELLA warning systems offer you a wide range of mounting options so that every vehicle can be individually equipped.

Features

• Lamp Type: LED - Power consumption: 2W
• With flashing warning signal - Lens Colour: transparent - LED colour: Blue
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7

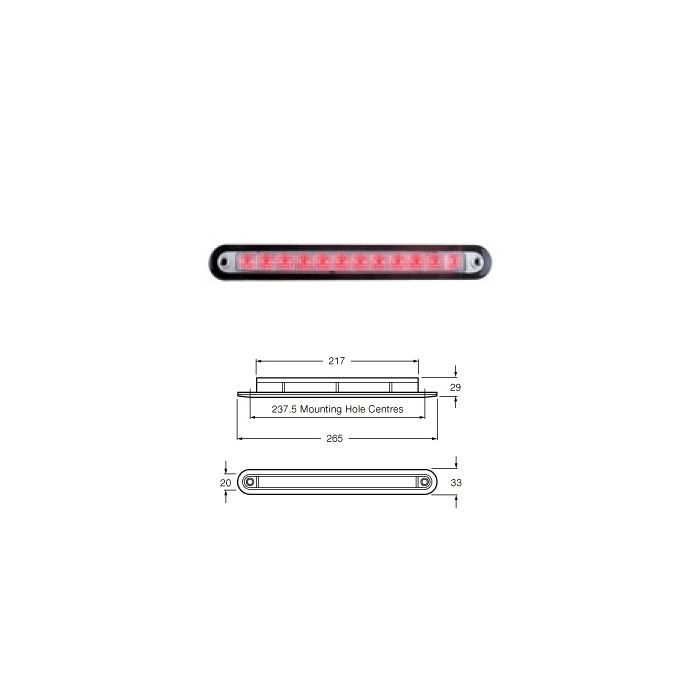

• Length: 265mm - Height: 33mm - Depth: 29mm - Electromagnetic Compatibility (EMC)
• These luminaires are tested to IP 6K7 and IP 6K9K and protected against the ingress of dust and water when temporarily submerged
• Reverse polarity protection: Incorrect contact between poles ensures that the luminaire is not damaged

Specifications

• Part number: 95907375
• Hella number: 2XD 959 073-752
• Barcode (EAN): 9416325156086
• Brand: Hella
• Mounting Type: Bolted / mounting
• Voltage: 24 V
• Lamp Type: LED
• Light Design: LED
• LED Colour: blue
• Length: 265 mm
• Height: 33 mm
• Depth: 29 mm
• Power Consumption: 2 W
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Cable Length: 2500 mm
• Light Function: with flashing warning signal
• fulfils ECE standard: R10
• Reverse polarity protection: Yes
• Lens Colour: transparent
• Product line: Strip Lamp

Electromagnetic Compatibility (EMC) Assy./disassy. by qualified personnel required!
