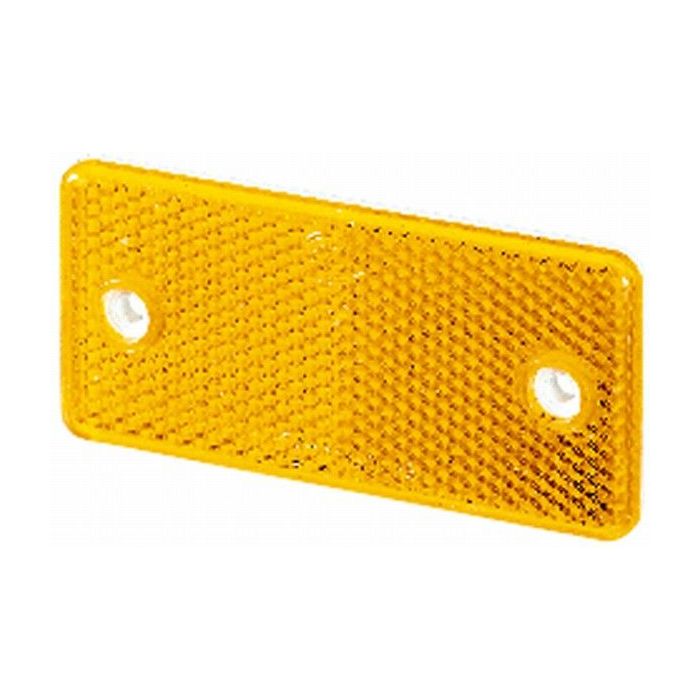

Hella 8RA003326017 Reflex Reflector - Yellow

Hella 8RA003326017 Reflex Reflector - Yellow

Hella 8RA003326017 Reflex Reflector - Yellow

Reflector - Lens Colour: Yellow - rectangular - Bolted/mounting - for horizontal fastening - ADR/GGVS/CCC - right/left - Quantity: 200

As additional passive light elements, the reflectors from HELLA improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.

Features

• Registration Type: ADR/GGVS/CCC - Fulfils ECE norm.: R3
• with reflector
• Length: 94mm - Width: 44mm - Height: 7mm
• without fastening material
• Effective reflective surface: 34cm²
• Horizontal or vertical mounting
• Reflected area 22 cm²

Specifications

• Part number: 8RA003326017
• Hella number: 8RA 003 326-017
• Barcode (EAN): 4082300220087
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: for horizontal fastening
• Fitting Position: Left / Right
• Light Function: with reflector
• Length: 94 mm
• Width: 44 mm
• Height: 7 mm
• Thickness: 7 mm
• Housing Type: Synthetic Material Housing
• Lens Colour: yellow (amber)
• fulfils ECE standard: R3
• Number of light functions: 1
• Effective reflective surface: 29 cm²
• Registration Type: ADR/GGVS approved / CCC approved / ECE approved
• Shape: rectangular

without fastening material Assy./disassy. by qualified personnel required!
