Hella 8KA007648041 15 Pole Spiral Cable - 24 Volt

Hella 8KA007648041 15 Pole Spiral Cable - 24 Volt

Hella 8KA007648041 15 Pole Spiral Cable - 24 Volt

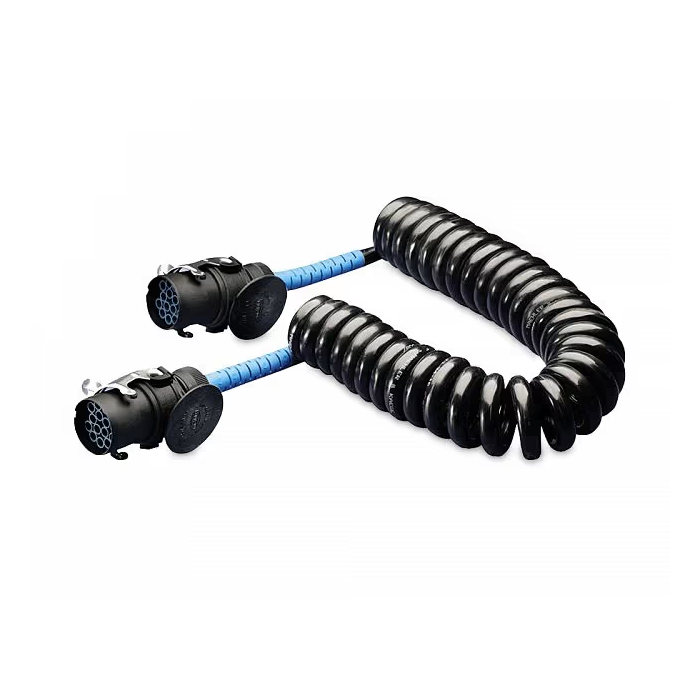

Spirally coiled cable with 2 plugs and guard grommets. Extremely resistant to high and low temperatures as well as weathering. Maximum resistance to oils and chemicals. Made to withstand repeated bending.

Coiled Cable - with buckle protection - 15-pin connector - 24V - ADR/GGVS - Black - Metal/PU (Polyurethane) - Quantity: 1

Helical connecting cables are used for the electrical connection between towing vehicles and trailers in the commercial vehicle sector.

Features

• Temperature range from: -40°C - Temperature range to: 90°C
• Prot.type (IP Code): IP69 - Registration Type: ADR/GGVS - DIN/ISO: 12098
• Broad programme for all common applications
• Extremely cold, heat and weather resistant
• High resistance to oils and chemicals
• Very good bending properties
• Excellent recovery behaviour

Specifications

• Part number: 8KA007648041
• Hella number: 8KA 007 648-041
• Barcode (EAN): 4082300186000
• Brand: Hella
• Material: Metal / PU (Polyurethane)
• Voltage: 24 V
• Colour: black
• Number of pins: 15
• Outer Diameter 1: 60 mm
• Length: 420 mm
• Protection Type per ISO 20653: IP69
• DIN/ISO: 12 098
• Temperature range from: -40°C
• Temperature range to: 90°C
• Wire cross-section: 12x1,5 / 3x2,5 mm²
• Working length: 4 m
• Registration Type: ADR/GGVS approved

with buckle protection Assy./disassy. by qualified personnel required!
