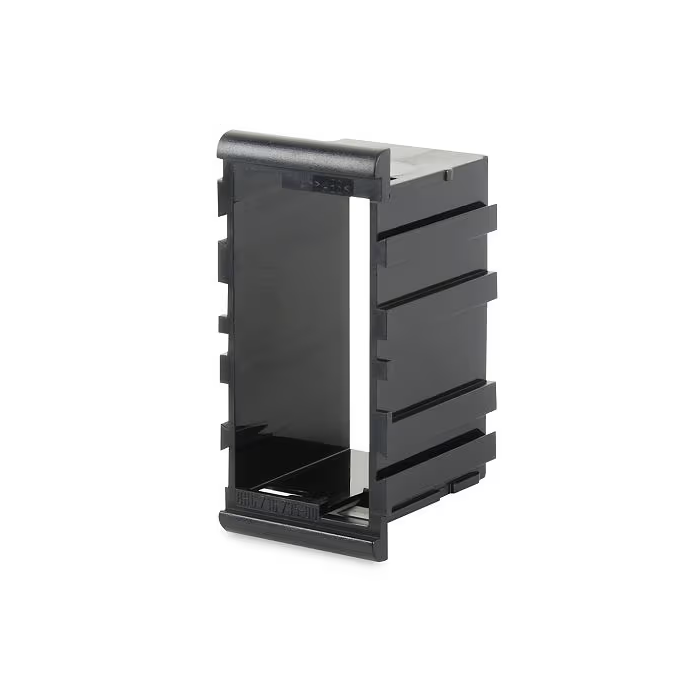

Hella 8HG716735001 Rocker Switch Modular Mounting Panel - Middle Piece

Hella 8HG716735001 Rocker Switch Modular Mounting Panel - Middle Piece

Hella 8HG716735001 Rocker Switch Modular Mounting Panel - Middle Piece

Panel systems for Switches in Model Range 007 832-...
Two end pieces are required to make a Modular mounting panel.By adding middle pieces, this panel can be extended as required.

Switch Holder - Fitting Position: Centre

The right switch for every application: The extensive HELLA modular switch range offers the right switch for almost every application thanks to a wide range of configuration options for functions and switch symbols. The series allow all areas of application to be optimally covered. Series 4570 / 7832 / 8910 / 8948: The basic programme that has proven itself for more than 20 years for simple electrical systems. The symbol discs are available in different colours according to DIN or customer request. All symbols can be displayed. The symbols are illuminated by incandescent lamps or LEDs. The switch and control panels can be illuminated with 12 V bulbs, 24 V bulbs or LEDs. There are both single-stage and two-stage switches; as louvres and push-buttons. Mounting strips for forming switch rows and combinations complete the range.

Features

• Mounting strip plug-in system - black intermediate piece
• 2 end pieces are required to assemble a mounting rail
• This mounting rail can be supplemented as required with additional spacers

Specifications

• Part number: 8HG716735001
• Hella number: 8HG 716 735-001
• Barcode (EAN): 4082300192384
• Brand: Hella
• Fitting Position: Centre

Assy./disassy. by qualified personnel required!
