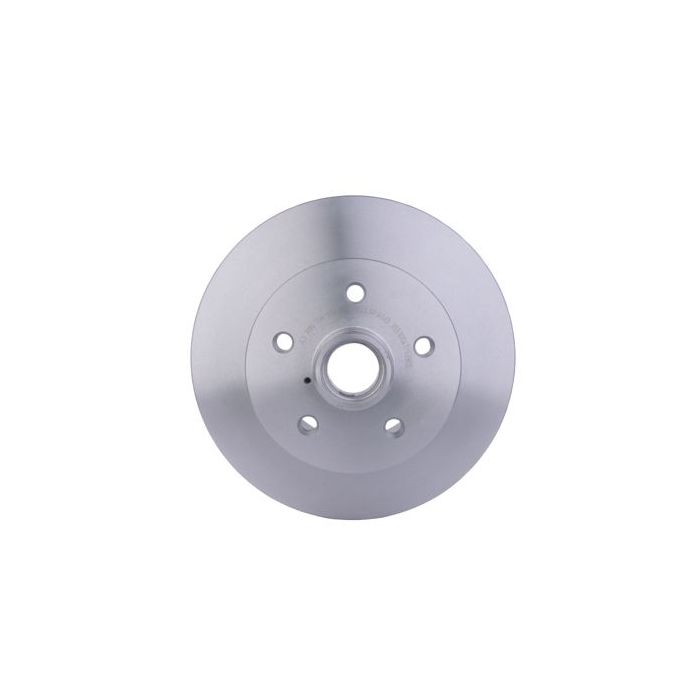

Hella 53905 Brake Disc

Hella 53905 Brake Disc

Hella 8DD355100471 Brake Disc

Brake Disc - 53905 - 278mm - 13mm - Solid - for e.g. VOLKSWAGEN

Outer Diameter: 278mm - Brake Disc Thickness: 13mm - Inner Diameter: 135.6mm - Centering Diameter: 45.2mm - Bolt Hole Circle Ø: 112mm - Wheel Bolt Bore Ø: 14mm - Height: 118.7mm - Weight: 8.7kg

The right choice for every requirement - HELLA brake discs with anti-corrosion coating for an improved appearance or HC brake discs with high-carbon grey cast iron for a higher load capacity

HELLA BRAKE DISCS - THE RIGHT SOLUTION FOR EVERY REQUIREMENT: with a product range that covers more than 97% of the European automotive market, HELLA offers the right brake disc for almost every vehicle. Each of our brake discs guarantees maximum safety, maximum comfort and an incredibly long service life. The portfolio includes coated and uncoated brake discs as well as those with and without ABS sensors, wheel hubs and wheel bearings. The range is also supplemented by our high-carbon brake discs, which boast a much higher heat resistance thanks to their material structure. Two-piece high-carbon and coated brake discs with a much lower weight round off our range. All our brake discs far exceed the ECE R90 required specifications.

Features

• fits e.g. VOLKSWAGEN (please check exact vehicle application)
• with wheel hub/without wheel bearing/without wheel studs
• Premium quality brake discs
• Optimum braking performance in all conditions
• Hella brake discs far exceed the required specifications of the ECE R90 directive
• Market coverage of > 97% of European vehicle stocks

Specifications

• Part number: 53905
• Hella number: 8DD 355 100-471
• Barcode (EAN): 4082300365139
• Brand: Hella
• Brake Disc Type: solid
• Outer Diameter: 278 mm
• Brake Disc Thickness: 13 mm
• Height: 118.7 mm
• Minimum thickness: 11 mm
• Inner Diameter: 135.6 mm
• Bolt Hole Circle Ø: 112 mm
• Centering Diameter: 45.2 mm
• Hole Arrangement/Number: 05/05
• Wheel Bolt Bore Diameter: 14 mm
• Weight: 8.7 kg
• Fitting Position: Front Axle

with wheel hub; without wheel bearing; without wheel studs Assy./disassy. by qualified personnel required!
