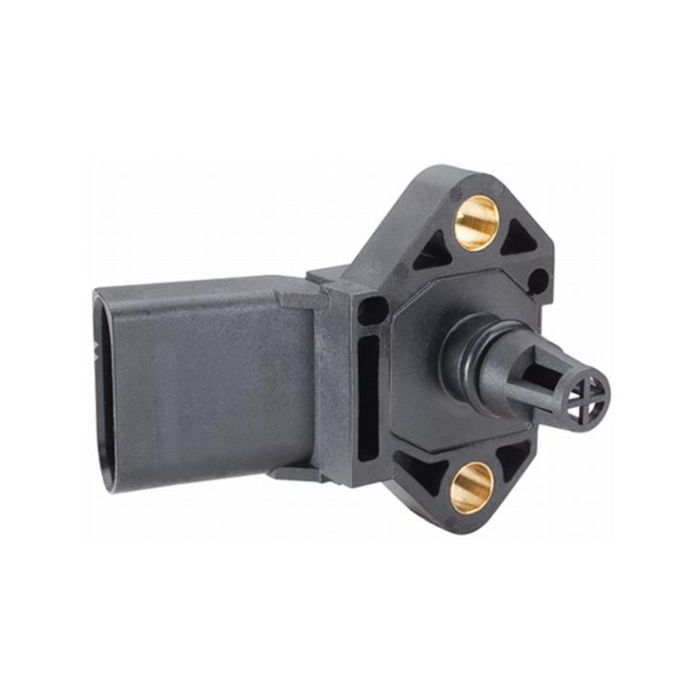

Hella 6PP009400551 Boost Pressure Sensor
Special Price
$74.97
Regular Price
$78.92
In stock
SKU
6PP009400551
Hella 6PP009400551 Boost Pressure Sensor is available to buy in increments of 1
Hella 6PP009400-551 Boost Pressure Sensor
Hella 6PP009400551 Boost Pressure Sensor
Hella 6PP009400-551 Boost Pressure Sensor
- OE Replacement Sensor
- Plug and Play- No coding required
- Made to meet or Exceed OE standards
| Brand | HELLA |
|---|---|
| Pressure [Pa] from | 11000 |
| Pressure [Pa] to | 254000 |
| Rated Voltage [V] | 5 |
| Voltage from [V] | 0,250 |
| Voltage to [V] | 4,750 |
| Number of connectors | 4 |
| Engine Codes | |
|
|
| OE Numbers | |
|
|
| Part Number | 6PP 009 400-551 |
| Types | Sensors - MAP |
| Warranty | 3 year manufacturer's warranty. |
Audi A4 2.0 TFSI (B7) 2004 - 2008
Audi A4 2.0 TFSI Quattro (B7) 2004 - 2008
Audi A4 1.8 T (B7) 2004 - 2008
Audi A4 1.8 T Quattro (B7) 2004 - 2008
Audi A4 1.8 T (B7) 2004 - 2008
Audi A4 2.0 TFSI (B7) 2004 - 2008
Audi A4 2.0 TFSI Quattro (B7) 2004 - 2008
Audi A4 2.0 TFSI 16V (B7) 2006 - 2009
Audi A4 1.8 T (B6) 2002 - 2004
Audi A4 1.8 T Quattro (B6) 2002 - 2004
Audi A4 1.8 T (B7) 2002 - 2009
Audi A4 1.8 T Quattro (B7) 2003 - 2009
Audi A4 2.0 TFSI (B8) 2008 - 2015
Audi A4 2.0 TFSI (B8) 2008 - 2013
Audi A4 2.0 TFSI Quattro (B8) 2008 - 2015
Audi S3 1.8 Quattro (8L) 154kw 1999 - 2002
Audi S3 1.8 Quattro (8L) 165kw 2001 - 2003
Audi TT 1.8 T (8N) 1998 - 2006
Audi TT 1.8 T Quattro (8N) 1999 - 2006
Audi TT 1.8 T (8N) 2005 - 2006
Audi TT 1.8 T (8N) 1999 - 2006
Audi TT 1.8 T Quattro (8N) 1999 - 2006
Audi TT 1.8 T (8N) 2002 - 2006
Audi TT 1.8 TFSI (8J) 2008 - 2014
Audi A5 2.0 TFSI Quattro (8T) 2008 - 2018
Audi A5 2.0 TFSI (8T) 2009 - 2018
Audi A5 2.0 TFSI Quattro (8T) 2009 - 2018
Audi Q3 2.0 TFSI Quattro (8U) 2011 - 2018
Audi A3 2.0 TFSI (8P) 2004 - 2013
Audi A3 1.8 TFSI (8P) 2008 - 2013
Skoda Superb 1.8 TSI (3T4) 2008 - 2015
Skoda Superb 1.8 TSI 4x4 (3T4) 2008 - 2015
Skoda Superb 1.8 TSI (3T5) 2009 - 2015
Skoda Superb 1.8 TSI 4x4 (3T5) 2009 - 2015
Skoda Yeti 1.8 TSI 4x4 (5L) 2009 - 2018
Skoda Octavia 2.0 RS (1Z3) 2008 - 2013
Skoda Octavia 2.0 RS (1Z5) 2005 - 2013
Skoda Octavia 1.8 TSI (1Z3) 2007 - 2013
Skoda Octavia 1.8 TSI (1Z5) 2007 - 2013
Volkswagen Eos 2.0 TSI (1F) 2007 - 2015
Volkswagen Eos 2.0 TSI (1F) 2009 - 2015
Volkswagen Jetta 2.0 TSI (162) 2010 - 2018
Volkswagen Jetta 2.0 TFSI (1K) 2005 - 2010
Volkswagen Passat 1.8 T (3B5) 1997 - 2000
Volkswagen Passat 1.8 TSI (365) 2010 - 2014
Volkswagen Passat 1.8 T 20V (3B3) 2000 - 2005
Volkswagen Passat 1.8 T 20V (3B6) 2000 - 2005
Volkswagen Passat 1.8 TSI (3C5) 2007 - 2011
Volkswagen Passat 1.8 TSI (3C2) 2007 - 2010
Volkswagen Passat 1.8 T (3B2) 1998 - 2000
Volkswagen Golf 2.0 GTI Mk5 (147kw) 2005 - 2009
Volkswagen Golf 2.0 GTI Mk6 (155kw) 2009 - 2012
Volkswagen Tiguan 2.0 TSI 4motion (5N) 2011 - 2016
Volkswagen Tiguan 2.0 TSI 4motion (5N) 2007 - 2016
Sensor, boost pressure - 5V - 4-pin connector
The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.
Features
- fits e.g. VW Golf V Variant (1K5) (please check exact vehicle application)
- from: 11000Pa - to: 254000Pa
- Pressure from 11,000 Pa to 254,000 Pa
- Voltage: 5 V
- Number of connections: 4-pole
- Avoidance of malfunctions during operation
- Higher engine power
- Brief Information
- *** HELLA Electronics OE competence for over 60 years.
Specifications
- Part number: 6PP009400551
- Hella number: 6PP 009 400-551
- Barcode (EAN): 4082300306972
- Brand: Hella
- Pressure [Pa] from: 11000
- Pressure [Pa] to: 254000
- Voltage: 5 V
- Number of pins: 4
- Fitting Position: Left / Right
7439-92-1; Lead Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 009.400-551 |
| Barcode | 4082300306972 |
| mpn | 6PP009400551 |
| Legacy Part Number | 6PP009400-551 |
