Hella 6PP009400521 Intake Manifold Pressure Sensor
Special Price
$87.15
Regular Price
$91.74
In stock
SKU
6PP009400521
Hella 6PP009400521 Intake Manifold Pressure Sensor is available to buy in increments of 1
Hella 6PP009400-521 Intake Manifold Pressure Sensor
Hella 6PP009400521 Intake Manifold Pressure Sensor
Hella 6PP009400-521 Intake Manifold Pressure Sensor
- OE Replacement Sensor
- Plug and Play- No coding required
- Made to meet or Exceed OE standards
| Brand | HELLA |
|---|---|
| Supplementary Article/Supplementary Info | |
|
|
| Pressure [Pa] from | |
|
|
| Pressure [Pa] to | |
|
|
| Rated Voltage [V] | |
|
|
| Voltage from [V] | |
|
|
| Voltage to [V] | |
|
|
| Number of connectors | |
|
|
| Number of mounting bores | |
|
|
| Engine Codes | |
|
|
| OE Numbers | |
|
|
| Part Number | 6PP 009 400-521 |
| Types | Sensors - MAP |
| Warranty | 3 year manufacturer's warranty. |
Citroen DS4 1.6 HDi 110 (82kw) 2011 - 2015
Citroen C4 1.6 HDi 110 2009 - 2010
Citroen C4 1.6 HDi 2006 - 2009
Citroen C4 Grand Picasso 2.0 HDi 138 2006 - 2010
Citroen Dispatch 2.0 HDi 120 2007 - 2018
Citroen DS3 1.6 HDi 110 (82kw) 2009 - 2015
Citroen C5 2.0 HDi (RD) 2008 - 2017
Citroen C5 2.0 Hdi (TD) 2008 - 2017
Citroen C5 1.6 HDi 115 (RD) 2012 - 2017
Citroen C3 1.6 HDi 90 2009 - 2014
Citroen C4 Picasso 2.0 HDi 138 2007 - 2009
Citroen Berlingo II 1.6 HDi 90 2008 - 2008
Citroen Xsara 2.0 HDi 90 1999 - 2005
Fiat Scudo 140 Multijet 2.0 D 2008 - 2016
Ford Focus 2.0 TDCi (LT) 2007 - 2009
Ford Focus 2.0 TDCi (LV) 2009 - 2011
Hyundai Grandeur 3.8 (TG) 2005 - 2011
Kia Grand Carnival 3.8 (VQ) 2006 - 2018
Kia Grand Carnival 3.8 (VQ) 2006 - 2010
Kia Sorento 3.8 4x4 (JC) 2007 - 2007
Mini Cooper D 1.6 (R56) 2007 - 2010
Peugeot Partner 1.6 HDi 75 (55kw) 2006 - 2018
Peugeot Partner 1.6 HDi 90 (66kw) 2006 - 2018
Peugeot Partner 1.6 HDi (66kw) 2008 - 2018
Peugeot 307 2.0 HDi 135 (100kw) 2005 - 2008
Peugeot 307 2.0 HDI 90 (66kw) 2002 - 2008
Peugeot 307 1.6 HDi 110 (80kw) 2004 - 2008
Peugeot 307 1.6 HDI 110 (80kw) 2004 - 2008
Peugeot 307 1.6 HDi 110 (80kw) 2004 - 2008
Peugeot 307 2.0 HDi 135 (100kw) 2004 - 2008
Peugeot 307 1.6 HDi (66kw) 2005 - 2008
Peugeot 307 2.0 HDi 110 (79kw) 2000 - 2008
Peugeot 307 2.0 HDI 90 (66kw) 2002 - 2008
Peugeot 308 1.6 HDi (80kw) 2008 - 2013
Peugeot 308 2.0 HDi (100kw) 2008 - 2013
Peugeot 308 1.6 HDi (82kw) 2009 - 2013
Peugeot 3008 1.6 HDi (80kw) 2009 - 2018
Peugeot 3008 1.6 HDi (82kw) 2010 - 2018
Peugeot 207 1.6 HDi (66kw) 2006 - 2018
Peugeot 207 1.6 HDi (80kw) 2006 - 2018
Peugeot 207 SW 1.6 HDi (66kw) 2007 - 2018
Peugeot 207 SW 1.6 HDi (80kw) 2007 - 2018
Peugeot 308 SW 1.6 HDi (80kw) 2008 - 2013
Peugeot 308 SW 2.0 HDi (100kw) 2008 - 2013
Peugeot 308 SW 1.6 HDi (82kw) 2009 - 2013
Peugeot 508 1.6 HDi (82kw) 2010 - 2018
Peugeot 406 2.0 HDI 90 (66kw) 1999 - 2004
Peugeot 407 2.0 HDi 135 (100kw) 2004 - 2010
Peugeot 407 2.0 HDi 135 (100kw) 2004 - 2010
Peugeot 407 2.0 HDi (103kw) 2008 - 2010
Peugeot Expert 2.0 HDi 120 (88kw) 2007 - 2018
Peugeot Expert 2.0 HDi 140 (100kw) 2007 - 2018
Peugeot 306 2.0 HDI 90 (66kw) 1997 - 2001
Peugeot 308 CC 2.0 HDi (100kw) 2009 - 2013
Volvo V50 2.0 D (MW) 2009 - 2010
Volvo C30 1.6 D 2006 - 2012
Volvo C30 2.0 D 2006 - 2012
Volvo C30 1.6 D2 2010 - 2012
Volvo S40 2.0 D (MS) 2004 - 2010

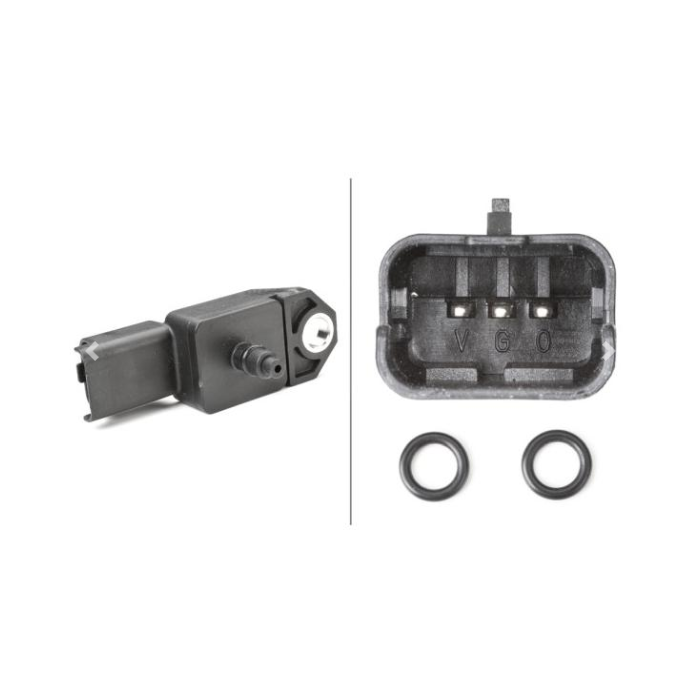

Sensor, boost pressure - 5V - 3-pin connector - with seal
The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.
Features
- fits e.g. Peugeot 207/207+ (WA_, WC_) (please check exact vehicle application)
- from: 10000Pa - to: 250000Pa
- Pressure from 10,000 Pa to 250,000 Pa
- Voltage: 5 V
- Number of connections: 3-pole
- Avoidance of malfunctions during operation
- Higher engine power
- Brief Information
- *** HELLA Electronics OE competence for over 60 years.
Specifications
- Part number: 6PP009400521
- Hella number: 6PP 009 400-521
- Barcode (EAN): 4082300307054
- Brand: Hella
- Number of mounting bores: 1
- Pressure [Pa] from: 10000
- Pressure [Pa] to: 250000
- Voltage: 5 V
- Number of pins: 3
with gasket/seal 7439-92-1; Lead Assy./disassy. by qualified personnel required!
| Manufacturer | Hella |
|---|---|
| hella_sap | 009.400-521 |
| Barcode | 4082300307054 |
| mpn | 6PP009400521 |
| Legacy Part Number | 6PP009400-521 |
