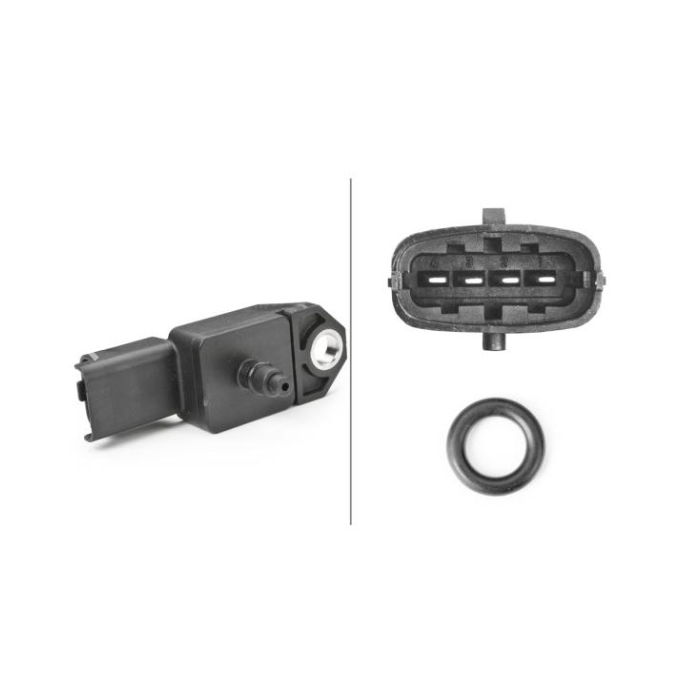

Hella 6PP009400291 Intake Manifold Pressure Sensor

Hella 6PP009400291 Intake Manifold Pressure Sensor

Hella 6PP009400-291 Intake Manifold Pressure Sensor

• OE Replacement Sensor
• Plug and Play- No coding required
• Made to meet or Exceed OE standards

Compatible Vehicles

Sensor, boost pressure - 5V - 4-pin connector - with seal

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

Features

• fits e.g. Renault Clio IV (BH_) (please check exact vehicle application)
• from: 11000Pa - to: 307000Pa
• NTC Sensor
• NTC sensor
• Pressure from 11,000 Pa to 307,000 Pa
• Voltage: 5 V
• Number of connections: 4-pole
• Resistance: 2,080 Ohm
• Brief Information
• *** HELLA Electronics OE competence for over 60 years.

Specifications

• Part number: 6PP009400291
• Hella number: 6PP 009 400-291
• Barcode (EAN): 4082300306804
• Brand: Hella
• Number of mounting bores: 1
• Pressure [Pa] from: 11000
• Pressure [Pa] to: 307000
• Voltage: 5 V
• Resistor: 2080 ohm
• Number of pins: 4
• Sensor Type: NTC Sensor
• Fitting Position: Charge Air Cooler / Lower / Right / behind exhaust turbocharger

with gasket/seal 7439-92-1; Lead Assy./disassy. by qualified personnel required!
