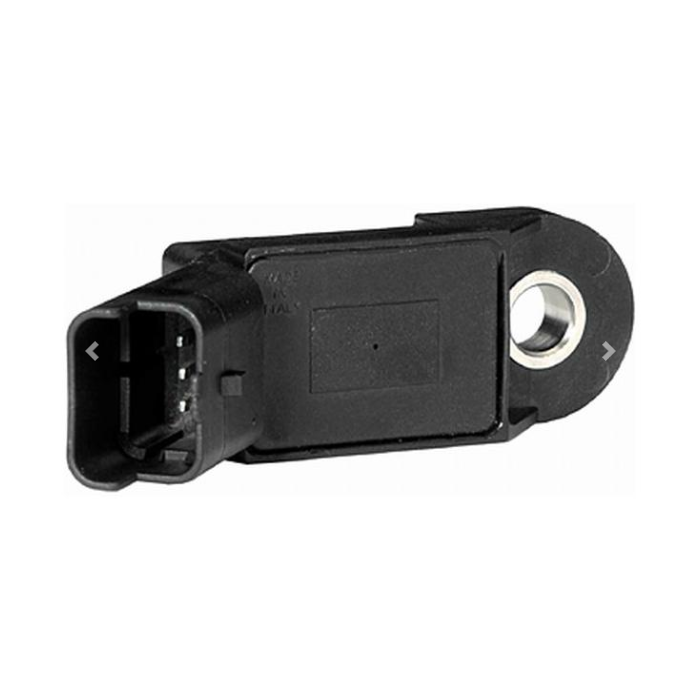

Hella 6PP009400161 Intake Manifold Pressure Sensor

Hella 6PP009400161 Intake Manifold Pressure Sensor

Hella 6PP009400-161 Intake Manifold Pressure Sensor

• OE Replacement Sensor
• Plug and Play- No coding required
• Made to meet or Exceed OE standards

Compatible Vehicles

Sensor, intake manifold pressure - 5V - without cable

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

Features

• fits e.g. Peugeot 206 Hatchback (2A/C) (please check exact vehicle application)
• from: 20000Pa - to: 105000Pa
• Pressure from 20,000 Pa to 105,000 Pa
• Voltage: 5 V
• Avoidance of malfunctions during operation
• Higher engine power
• Continuous expansion of the product range
• Brief Information
• *** HELLA Electronics OE competence for over 60 years.

Specifications

• Part number: 6PP009400161
• Hella number: 6PP 009 400-161
• Barcode (EAN): 4082300215991
• Brand: Hella
• Pressure [Pa] from: 20000
• Pressure [Pa] to: 105000
• Voltage: 5 V

without cable 7439-92-1; Lead Assy./disassy. by qualified personnel required!
