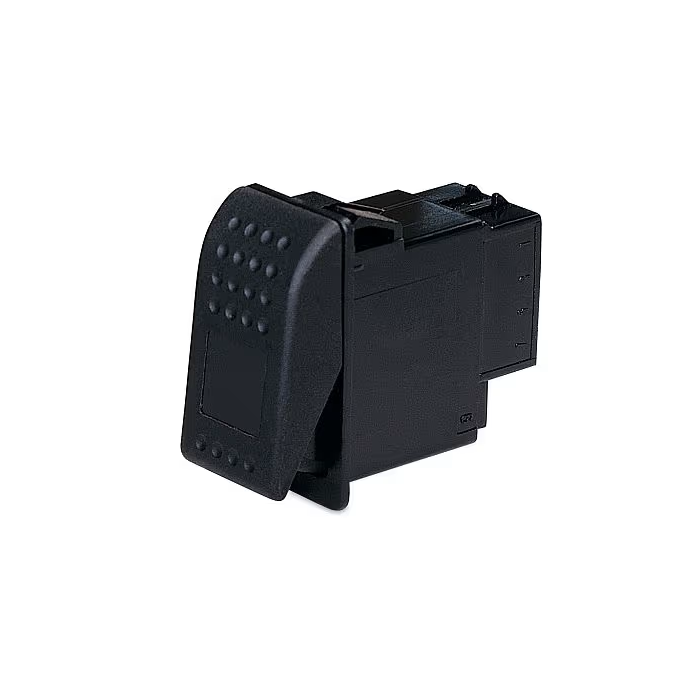

Hella 6GM007832251 Rocker Switch (On)-Off-(On) Momentary (location light option)

Hella 6GM007832251 Rocker Switch (On)-Off-(On) Momentary (location light option)

Hella 6GM007832251 Rocker Switch (On)-Off-(On) Momentary (location light option)

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.

Switch - Flip Switch Control - Trim Level: I->0<-II - Number of connectors: 8 - Clipped

The right switch for every application: The extensive HELLA modular switch range offers the right switch for almost every application thanks to a wide range of configuration options for functions and switch symbols. The series allow all areas of application to be optimally covered. 7832 series: Belongs to the basic programme that has proven itself for simple electrical systems for more than 20 years. The symbol discs are available in different colours according to DIN or customer request. The symbols are illuminated by incandescent lamps or LEDs, which can be ordered as accessories. All symbols can be displayed. The switch and control panels can be illuminated with 12 V bulbs, 24 V bulbs or LEDs. There are both single-stage and two-stage switches; as louvres and push-buttons. Mounting strips for forming switch rows and combinations complete the range.

Features

• Switch, momentary, two-position, with 2 circuits, designed for location lighting
• The switches of the 7832 series are designed for the interior of commercial vehicles and passenger cars
• The series uses the common standards in automotive engineering

Specifications

• Part number: 6GM007832251
• Hella number: 6GM 007 832-251
• Barcode (EAN): 4082300190564
• Brand: Hella
• Mounting Type: Clipped
• Actuation Type: Rocker Actuation
• Number of connectors: 8

Assy./disassy. by qualified personnel required!
