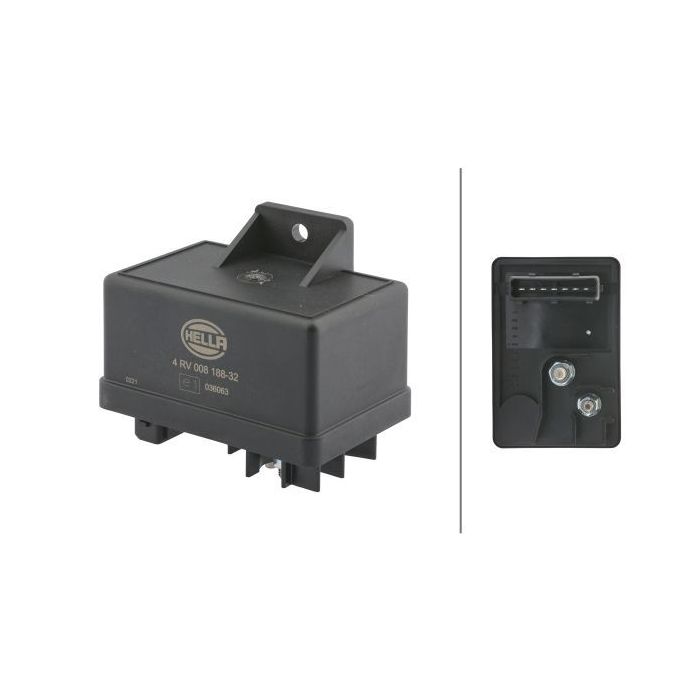

Hella 4RV008188321 After-Glow Control Unit Relay - 9 Pin (12V)

Hella 4RV008188321 After-Glow Control Unit Relay - 9 Pin (12V)

Hella 4RV008188321 After-Glow Control Unit Relay - 9 Pin (12V)

Control Unit, glow time - 12V - 9-pin connector - Pre-Glow Time: 8s - after-glow capable - with external temperature measurement

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA preheating relay is responsible for controlling the preheating system and is therefore highly relevant for compliance with the prescribed emissions of the engine. Due to the high quality, it withstands the difficult requirements and environmental influences and ensures the smooth start of the diesel engine.

Features

• fits e.g. Citroën Saxo (S0, S1) (please check exact vehicle application)
• for manufacturer: Bosch/Nagares
• Pre-glow relay 12 V, 9-pole, afterglow capable, Terminal S = shut-off afterglow
• Rated switching current: max. 70 A (at 80 °C ambient temperature)
• Preheating time: at + 20 °C / < 8 s
• Reduction of fuel consumption
• Compliance with emissions
• Brief Information
• *** HELLA Electronics OE competence for over 60 years.

Specifications

• Part number: 4RV008188321
• Hella number: 4RV 008 188-321
• Barcode (EAN): 4082300086423
• Brand: Hella
• Manufacturer Restriction: Bosch / Nagares
• Voltage: 12 V
• Glow Plug Design: after-glow capable
• Number of pins: 9
• Pre-glow time: 8 s

with external temperature measurement Assy./disassy. by qualified personnel required!
