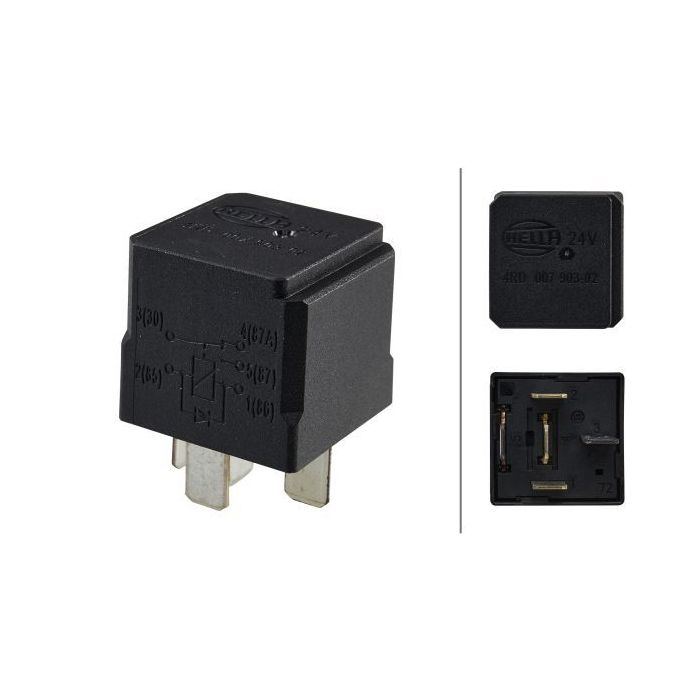

Hella 4RD007903021 S2 Change Over Relay - 5 Pin (24V)

Hella 4RD007903021 S2 Change Over Relay - 5 Pin (24V)

Hella 4RD007903021 S2 Change Over Relay - 5 Pin (24V)

Relay, main current - 24V - 5-pin connector - Wiring Diagramme: W3 - Plug: B1 - Normally Closed Contact/Normally Open Contact/Changeover Contact - Colour: Black - without holder

HELLA's quality relays are versatile and always reliable - that's what our many years of original equipment experience and our high level of manufacturing expertise stand for. We produce more than 100 million relays per year in our own production. Renowned car manufacturers have been relying on HELLA's proven quality for decades. The areas of application are varied and include engine control units, headlight cleaning systems, starters, fuel pumps, fan motors, horns and fanfares. HELLA is also certified in various relevant areas, such as DIN EN ISO 9001:2008, ISO / TS 6949:2009, ISO 14001. HELLA relays also comply with the standards of ROHS (2002 / 95 / EC) and REACh. They are available in 12 V and 24 V.

Features

• Temp. Range: 80°C
• Ohmic Load: 20A - Inductive Load: 16A - Capacitive Load: 15/5A - Capacity at 24V: 10/20A
• Prot.type (IP Code): IP54
• with diode
• Mini relay - change-over relay 24 V, 5-pole, with parallel diode, without holder
• Rated switching current: min. 5 A, max. 20 A (at 80 °C ambient temperature)
• Number of switching operations: min. 100,000
• Brief Information
• *** HELLA Electronics OE competence for over 60 years.

Specifications

• Part number: 4RD007903021
• Hella number: 4RD 007 903-021
• Barcode (EAN): 4082300086829
• Brand: Hella
• Protection Type per ISO 20653: IP54
• Voltage: 24 V
• Capacity at 24V: 10/20A
• Colour: black
• Inductive Load: 16 A
• Capacitive Load: 5 / 15 A
• Ohmic Load: 20 A
• Number of pins: 5
• Wiring Diagramme: W3
• Switch Function: Changeover Contact / Normally Closed Contact / Normally Open Contact
• Plug Type ID: B1
• Temperature range: 80°C

with diode without holder Assy./disassy. by qualified personnel required!
