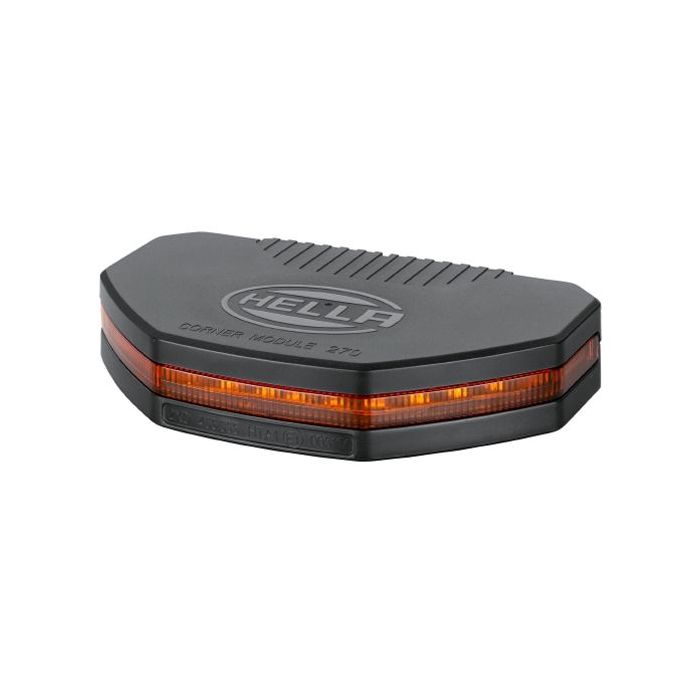

Hella 2XD455355011 LED Strobe-type Beacon Warning Light - Amber

Hella 2XD455355011 LED Strobe-type Beacon Warning Light - Amber

Hella 2XD455355011 LED Strobe-type Beacon Warning Light - Amber

LED-Strobe-type Beacon - Corner Module 270 - 12/24V - Amber - mounting/Screw Connection - Cable: 200mm - Plug: open cable ends - Quantity: 1

The Corner Module 270 is a special wide-angle warning light that is approved as a set of two modules as a "half bar" and represents a new alternative to conventional warning lights. Two modules illuminate an area of at least 270° at a distance of 20 m from the vehicle. The modules can be integrated into the vehicle body or mounted on it. Appropriate brackets are included for mounting as a surface-mounted product. The housing is black and the flashing yellow warning signal creates attention around the vehicle. It is possible to set a double flash pattern as well as synchronise the elements. The modules must be positioned at an angle of 45° to the direction of travel of the vehicle in order to meet the legal requirements for mounting.

Before you connect the integrated warning lights, please check if local regulations allow you to use the LED directional warning lights in the installed direction.

Features

• Lamp Type: LED - Number of LEDs: 16 - Power consumption: 30W
• With flashing warning signal - Lens Colour: yellow (amber) - LED colour: yellow (amber)
• Registration Type: ADR/GGVS - Fulfils ECE norm.: R10/R65 - Prot.type (IP Code): IP6K7
• Housing material: PC (Polycarbonate) - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)
• Width: 165mm - Height: 37mm - Depth: 103mm
• Spare part Corner Module 270, single module
• Brief Information

Specifications

• Part number: 2XD455355011
• Hella number: 2XD 455 355-011
• Barcode (EAN): 4082300774573
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Power Consumption: 30 W
• Height: 37 mm
• Width: 165 mm
• Depth: 103 mm
• Cable Length: 200 mm
• Light Function: with flashing warning signal
• Light colour: yellow (amber)
• Number of LEDs: 16
• Flash rate per minute: 124
• Plug Type: open cable ends
• Registration Type: ADR/GGVS approved
• Protection Type per ISO 20653: IP6K9K
• fulfils ECE standard: R10 / R65 HTA1
• Temperature range from: -40°C
• Temperature range to: 60°C
• Lens Material: PC (Polycarbonate)
• Lens Colour: yellow (amber)
• Housing material: PC (Polycarbonate)
• Housing Colour: black
• Reverse polarity protection: Yes
• Weight: 318 g
• Accessories: 1
• Product line: Corner Module 270

Follow nat. rules for attachment, install. and operation. Assy./disassy. by qualified personnel required!
